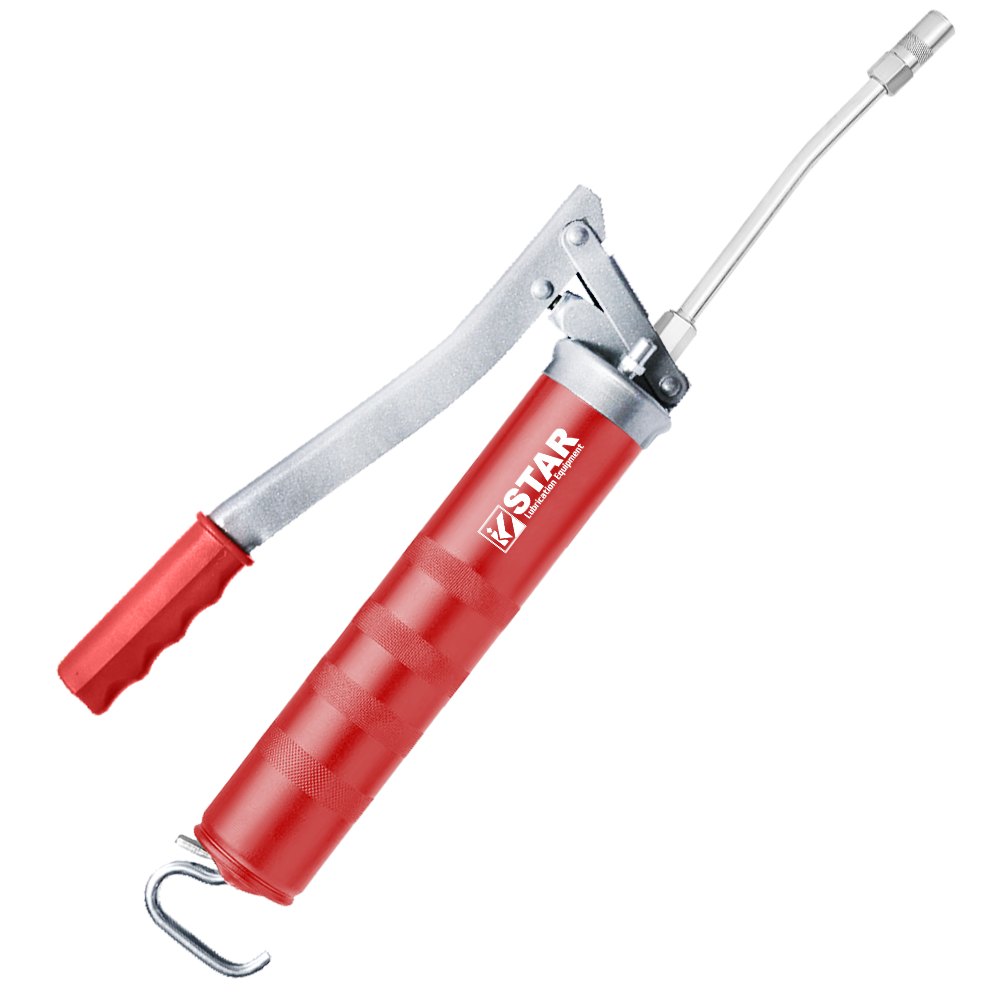

S-736 Lever Action Grease Gun

Frequently Asked Questions: S-736 European Model Reinforced Steel Head Lever Action Grease Gun

What is the S-736 European Model and what makes it different from other STAR lever grease guns?

The S-736 European Model is STAR's 10,000 PSI heavy-duty lever grease gun engineered with European design sensibilities: reinforced steel head (thicker-gauge steel than standard), heavy-duty handle in the same thicker-gauge steel, extended deep threading on the barrel and cap for extra-strong head-to-barrel grip, and full 4-way loading. This combination is distinct from the S-709 (same 10,000 PSI but aluminium die cast head), the S-707 (12,000 PSI flagship with Quadra-Cut Precision forged-steel head), and the S-706 (6,000 PSI medium duty). The "European Model" name refers to the design convention common across European workshops and fleet-service depots where reinforced steel construction and 4-way loading are the standard specification.

Why does the S-736 use a reinforced steel head instead of aluminium die cast?

The reinforced steel head survives repeated concrete drops where aluminium die cast heads can crack. In workshop and fleet-service environments where tools get dropped routinely onto concrete floors, reinforced steel construction means significantly fewer gun replacements over the service life. The trade-off is gun weight (the S-736 is heavier than the aluminium-head S-709 at the same 10,000 PSI pressure tier). For indoor industrial service where tools are handled carefully and drop resistance is not a primary concern, the S-709 is the lighter option; for rough yard workshops, fleet depots, construction-equipment service yards, and agricultural contractor operations where the gun gets dropped regularly, the S-736's reinforced steel head is the right construction tier.

How is the S-736 at 10,000 PSI different from the 12,000 PSI S-707 flagship?

The S-707 is the flagship at 12,000 PSI with a forged-steel Quadra-Cut Precision head, specifically engineered to clear crusted fittings on severely outdoor-exposed equipment (mining haul trucks, broadacre farm tractors in wet-season storage, mothballed construction equipment). The S-736 at 10,000 PSI is matched to the majority of European workshop and fleet service workloads where equipment is on regular maintenance schedules and 12,000 PSI is unused capacity. Pick the S-707 for the most demanding heavy-duty service with severely crusted fittings; pick the S-736 for European workshop, fleet, and industrial service where 10,000 PSI handles the typical workload and reinforced steel head construction covers the drop-resistance requirement.

What is "extended deep threading" on the S-736 barrel and cap?

The barrel and the head cap on the S-736 are machined with extended deep threads that add significantly more thread engagement length than standard head-to-barrel joints on lever grease guns. Extra thread engagement distributes clamping load across more thread turns, which reduces stress concentration at the thread roots and lowers the risk of cross-threading or stripping over repeated reload cycles. Standard-spec lever guns typically have 4-6 thread turns at the barrel-to-head joint; the S-736's extended deep threading adds roughly 50% more thread engagement. Particularly valuable on a heavy-duty gun that sees frequent bulk reloads where the barrel is unscrewed at each reload; combined with rolled-thread manufacturing (work-hardens the thread surface), the head-to-barrel joint on the S-736 extends service life by thousands of reload cycles compared with standard-spec lever guns at the same pressure tier.

Is the S-736 drop-resistant for rough industrial environments?

Yes. The reinforced steel head is specifically engineered for drop impact tolerance, and the head together with the heavy-duty thicker-gauge steel handle, extended deep threading joint, and robust 0.049" (1.2 mm) cold-drawn steel barrel gives the gun drop-resistance characteristics appropriate for rough workshop and construction-yard service. In real-world testing on concrete floors, the reinforced steel head survives repeated drops where aluminium die cast heads typically crack after 1-3 impacts. The trade-off is extra gun weight versus aluminium-head alternatives, but for high-use environments that weight is less significant than the gun-replacement cost savings. For drop-intensive environments (mining service, agricultural contractor tool-bags, multi-operator workshop shared-tool use), the S-736 reinforced steel construction is the right tier.

Can the S-736 use standard 14 oz. (400 g) tube cartridges?

Yes. The S-736's 57.15 mm (2-1/4") barrel diameter is the worldwide standard for 14 oz. (400 g) tube cartridges, compatible with stocked grease cartridges from any major European, UK, North American, Asian, African, Middle Eastern, or Latin American grease supplier. No adapters or spacers needed. The 4-way loading design also accepts bulk pack from pails, suction fill from open containers, and filler pump fill, so operators can switch between cartridge and bulk-supply formats based on the service scenario. Standard 14 oz. cartridges at the 57.15 mm barrel diameter are the worldwide stocked format; the S-736 does not use the 450 g wide-barrel format used in Australia and New Zealand, nor the Jiabara, F-type, or spin-on specialty cartridge formats used in specific regional markets.

What 4-way loading options does the S-736 support?

The S-736 accepts grease from all four industry-standard supply formats: (1) standard 14 oz. (400 g) tube cartridge, (2) bulk pack from 5 kg / 15 kg / 20 kg grease pails, (3) suction fill from open grease containers, and (4) filler pump fill from shared depot reservoirs. Each format is used for different service scenarios: workshop cartridges for clean customer-facing work, bulk pack for lower per-kilogram grease cost on busy service days, suction fill for remote field service where bulk grease is carried in open containers, filler pump for rapid shift-start reload across multiple guns in fleet-service depots. The S-736 handles all four without conversion kits, tool swaps, or head reconfiguration. Lower-cost 10,000 PSI guns on the market sometimes restrict to cartridge-only or cartridge-plus-bulk; the S-736's full 4-way loading is part of the European design convention.

Is 10,000 PSI safe for bearing seals during service?

Yes. Bearing seals typically fail at internal grease-cavity pressures of 500 to 1,500 PSI, far below the 10,000 PSI maximum the S-736 can develop at a fully blocked fitting. Actual pressure reaching the bearing seal depends on the fitting's flow restriction: a clean zerk on a healthy bearing passes grease at low pressure, the pump never reaches maximum PSI unless the fitting is completely blocked. The 10,000 PSI specification is the maximum the pump can build when the coupler is blocked, not the steady-state pressure reaching the bearing. To prevent over-greasing, stop pumping the moment fresh grease appears at the bearing seal or the lever resistance sharply increases. Over-greasing damages seals, causes bearing overheating, and attracts contamination; controlled pumping avoids that.

Can a 10,000 PSI grease gun cause a grease injection injury?

Yes. Grease injection injuries from 10,000 PSI grease guns are documented in emergency medicine and require immediate surgical treatment. A pinhole in the hose or unseated coupler can drive grease through intact skin at 10,000 PSI. The initial wound looks like a tiny puncture and often does not hurt much initially; grease then migrates along tissue planes and causes chemical damage that becomes visible as swelling, colour change, and infection over 24-72 hours. Go to an emergency department immediately for any suspected injection injury, brief the staff it is a high-pressure grease injection (not a simple puncture), and do not wait for pain to develop. Untreated grease injections can progress to tissue necrosis and amputation.

What PPE is required when using the S-736?

Mandatory: wraparound safety glasses (ANSI Z87.1+ impact-rated with side shields), nitrile chemical-resistant gloves, long sleeves, and closed-toe steel-capped shoes at minimum. Safety rules: never point the coupler or flex hose at any body part or another person, keep the non-lever hand behind the coupler head during pumping, inspect the hose and coupler before each use for visible damage (cracks, bulges, stiffening, loose connections), never test grease flow by pressing the coupler against skin or fabric, never use the gun near open flames (grease is flammable at high temperatures), do not operate the gun in confined spaces without adequate ventilation. PPE requirements are pressure-tier-based: the S-736 at 10,000 PSI has the same PPE profile as the S-707 at 12,000 PSI; only the tolerance for operator error differs slightly.

How do I prime the S-736 after a cartridge change?

Retract and lock the plunger rod, unscrew the barrel, insert the 14 oz. cartridge nose-first with both seals peeled, screw the head back on, release the plunger rod from the lock. Crack the air bleeder valve a quarter turn to release trapped air, then pump the lever 3 to 5 full strokes with the coupler disconnected. Grease should flow cleanly from the bleeder seam by the third or fourth stroke. Close the bleeder valve when grease flows without air bubbles. If priming fails after 5 strokes: check the plunger rod is fully released (the extra-heavy follower spring needs to compress the grease column against the head), inspect the cartridge seating for air voids at the cartridge-head interface, and in cold weather allow the grease 5-10 minutes to warm to ambient before priming. First-use priming on a brand-new gun may take 5-8 strokes because the internal cavity is completely empty of grease.

Why does my lever grease gun lose prime, and does the S-736 prevent this?

Standard lever grease guns lose prime because air enters the pump cavity during cartridge changes, because the follower spring is too weak to maintain grease-column pressure at half-empty fills, because grease oxidation during long storage separates oil from thickener, or because the plunger seal wears out and lets air bypass. The S-736 addresses three of these: the extra-heavy follower spring maintains positive pressure across the full reservoir drawdown even at half-empty fills, the air bleeder valve makes priming-after-reload fast rather than frustrating, and the rolled threads combined with extended deep threading reduce the risk of barrel-thread cross-threading that would compromise the head-to-barrel seal. The S-736 cannot prevent air entering during a careless cartridge change (that's an operator-side issue that the air bleeder valve handles during priming), but it significantly reduces the follower-pressure-related and thread-seal-related prime failures that plague lower-quality standard-spec lever guns over long service life.

Is the S-736 suitable for farm tractors, construction equipment, and industrial service?

Yes for all three, at 10,000 PSI with 4-way loading flexibility and reinforced steel drop-resistant construction. Farm tractor and combine harvester service: chassis zerks, PTO shaft fittings, loader pivot points, hay baler bearings, mower deck lubrication. Construction equipment: excavator pin bearings, backhoe bucket pins, loader articulation joints, bulldozer chassis zerks, skid steer maintenance. Industrial service: conveyor belt bearings, electric motor bearings, pumps and valves, generator service, CNC machine-tool bearings, compressor lubrication. For severely crusted fittings on mothballed equipment where 10,000 PSI is marginal, step up to the 12,000 PSI S-707 flagship. For light-duty workshop service on clean zerks, step down to the 6,000 PSI S-706 medium-duty.

How should I store the S-736 between service cycles?

For storage under 30 days: leave a cartridge in the gun (the air bleeder valve keeps grease fresh against air exposure), retract and lock the plunger rod, cap the coupler nozzle, store horizontally in a clean dry area. For storage over 30 days: unscrew the barrel, remove the cartridge or drain the bulk reservoir, wipe the barrel interior with a lint-free rag dampened with mineral spirits, dry completely, reassemble with a light film of grease on the plunger-rod seal, cap the coupler, and store horizontally. Long-term storage drains are recommended for seasonal equipment service cycles where the gun won't be used for months; keeping grease in the gun during extended storage accelerates oil separation from the thickener and can cause priming issues on reactivation. Always store out of direct sunlight to prolong powder-coat and hose-rubber lifespan. The reinforced steel head is corrosion-resistant in humid storage conditions thanks to the powder-coat finish and the dry-interior storage recommendation.

Can the S-736 be rebuilt with standard STAR spare parts?

Yes. The S-736 is built as a serviceable tool with replaceable seals, O-rings, follower spring, plunger-rod seal, coupler, flexible hose, and steel extension. The reinforced steel head and heavy-duty handle are typically not wear parts; they outlast the rest of the gun's consumables by a large margin. Rebuild kits containing the standard wear parts are listed in the STAR spare parts catalogue and available through European distributors. Typical wear-part lifespan at regular heavy-duty workshop use: O-rings and plunger seal 2-4 years, follower spring 4-8 years, hose and coupler 2-3 years depending on use intensity and solvent exposure. A full rebuild costs a fraction of a new gun and extends working life indefinitely. The reinforced steel head construction means the S-736 is particularly cost-effective to rebuild because the expensive steel-head component rarely needs replacement.

Is the S-736 available for OEM and private-label orders to European distributors?

Yes. OEM and private-label manufacture is available on the S-736 for European, UK, and global distributors including custom branding, packaging design for European retail or industrial-supply format, BSPT/NPT/M10 thread variants, and kit configuration per agreement. MOQ 100 applies as the baseline; higher customisation levels (custom thread specifications, custom kit bundles, custom retail packaging) may have higher MOQ thresholds. Shipping is sea freight to Rotterdam, Hamburg, Antwerp, Bremerhaven, Felixstowe, and other European hub ports, with mixed-container consolidation with other STAR products (lever guns across the range, pistol grip guns, dispenser buckets, accessories) possible to hit MOQ thresholds economically. Global export destinations include Brazil, Indonesia, Kenya, Mexico, Nigeria, Philippines, Saudi Arabia, South Africa, UAE Dubai, and Vietnam. Contact the STAR export team for distributor pricing, lead times, catalogue requests, and packaging specifications. Made in Ludhiana, Punjab, India, exported to 27+ countries since 1980.
