Grease Gun Steel Extensions

Frequently Asked Questions: Grease Gun Steel Extensions

What are the STAR RS Series steel extensions for grease guns?

The RS Series is a range of rigid steel extension pipes manufactured by STAR in six lengths from 4" to 9", available in both straight and bent configurations. They thread directly into the grease gun head outlet and provide a solid, air-free path for grease delivery to the coupler or fitting. Constructed from carbon steel with zinc plated finish and high-strength rolled threads. Thread options: 1/8" BSPT, 1/8" NPT and M10 x 1 for universal compatibility with lever action, pistol grip and cordless grease guns.

What pressure can a steel grease gun extension handle?

The RS Series steel extensions are rated for the full working pressure of any manual or powered grease gun, including guns developing up to 12,000 PSI. Carbon steel tubing with rolled threads handles sustained pressure cycling without fatigue or deformation. The extension itself does not limit the gun's pressure output; the pressure limit is determined by the grease gun mechanism and head construction. Zinc plating does not affect pressure rating.

What sizes do the RS Series steel extensions come in?

The RS Series is available in six standard lengths: 4", 5", 6", 7", 8" and 9". Each length comes in both straight (S suffix) and bent (B suffix) configurations, giving 12 standard options. The 6" straight (RS-6S) is the most common workshop length and ships as standard with most STAR grease gun kits. Custom lengths beyond 9" can be manufactured on order. For reach beyond 9", consider switching to a flexible hose from the FS Series, which handles the bending that a rigid pipe cannot.

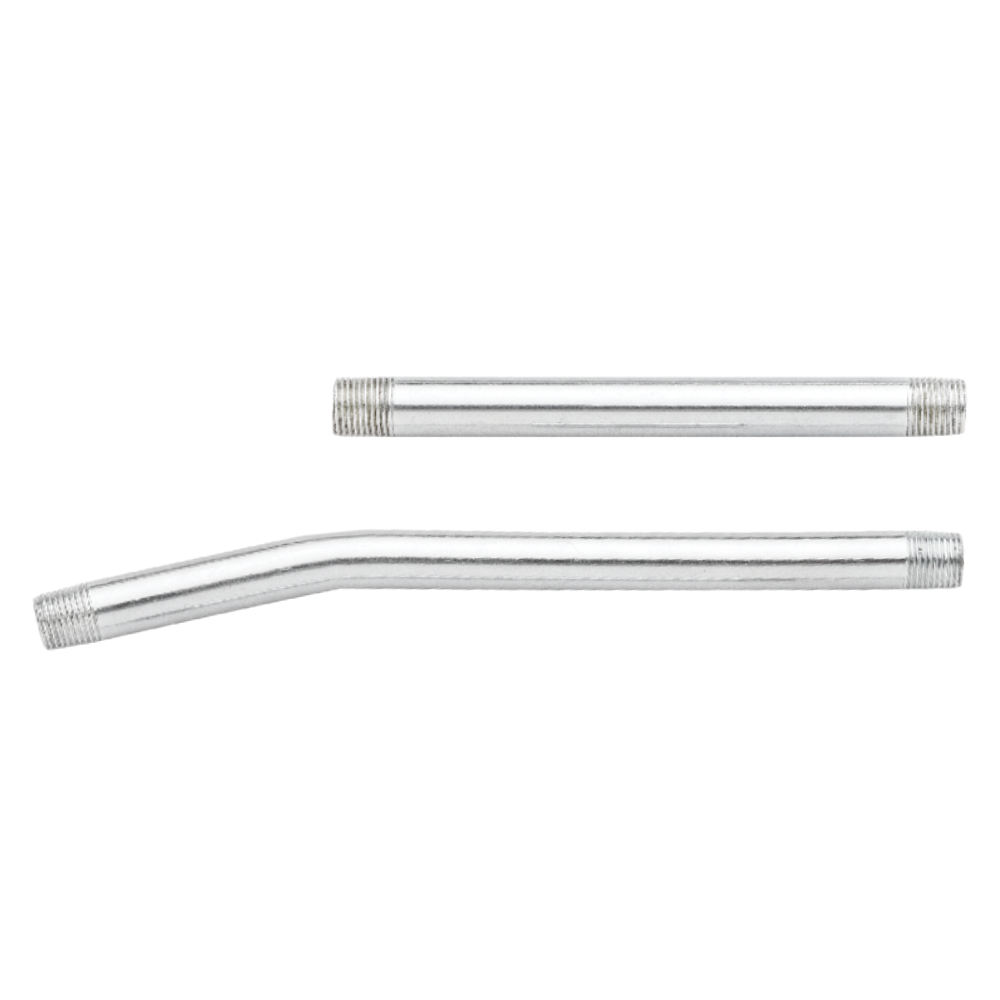

What is the difference between straight and bent grease gun extensions?

Straight extensions (S suffix) deliver grease in a direct inline path; bent extensions (B suffix) angle the delivery tip to reach fittings that face sideways or sit behind guards. Use straight when the fitting faces you directly with clear access. Use bent when the fitting is offset, behind a belt guard, recessed into a frame, or mounted at an angle that would require awkward gun positioning with a straight pipe. The bent angle allows the coupler to lock onto fittings that a straight extension physically cannot reach without repositioning the entire gun body.

What thread size is a grease gun extension pipe?

The RS Series is manufactured with three thread options: 1/8" BSPT, 1/8" NPT and M10 x 1. BSPT (British Standard Pipe Taper) is standard in the UK, Australia, India and most of Asia. NPT (National Pipe Taper) is the North American standard. M10 x 1 metric threads appear on European-made grease guns. BSPT and NPT have different taper angles despite looking similar; mixing them causes leaks. Always match the extension thread to your grease gun head outlet. Specify your thread when ordering.

When is a rigid extension better than a flexible hose?

A rigid extension is the correct choice whenever the path between your grease gun and the fitting is a straight line with no obstacles. Rigid steel delivers grease faster because it contains zero trapped air and does not expand under pressure. Every pump stroke transfers immediately to the coupler without energy loss. Flexible hoses absorb some pumping energy through wall expansion and can trap air in bends. For accessible fittings on flat surfaces, open panels and inline zerks, the RS Series rigid extension outperforms a flexible hose on speed and priming reliability.

What do tractor owners need from a grease gun extension?

Tractors typically have 15 to 40 grease fittings, most of which are directly accessible on the chassis, steering linkage and implement hitch. A 6" straight extension (RS-6S) handles the majority of tractor fittings efficiently. Add a 6" bent extension (RS-6B) for fittings behind PTO guards and under the cab floor. For fittings deep inside the front axle housing or behind engine mounts, switch to a 12" or 15" flexible hose. The RS Series zinc plating resists the moisture and mud exposure common in agricultural service environments.

Is zinc plating important for grease gun extensions?

Zinc plating provides sacrificial corrosion protection that significantly extends the service life of a steel extension in workshop and field environments. Bare carbon steel rusts within days when exposed to workshop moisture, grease splatter, coolant and cleaning solvents. The zinc layer corrodes preferentially, protecting the steel underneath even if the coating is scratched during use. For marine, coastal and food-processing environments where moisture exposure is constant, zinc plating is essential rather than optional. Chrome plating offers additional aesthetic finish but zinc provides the primary corrosion barrier.

Why is my grease gun extension pipe leaking?

Leaking from the extension connection typically indicates a cross-threaded fitting, mismatched thread standard, or worn threads. First confirm your extension thread (BSPT, NPT or M10 x 1) matches your grease gun head outlet exactly. BSPT and NPT look similar but leak when mixed due to different taper angles. If threads match, check for visible damage: stripped threads, burrs from dropping, or debris in the thread. Hand-start the extension (never use tools to force the first few turns) and tighten firmly by hand. If leaking persists with correct threads and no visible damage, the extension or gun head threads may be worn and need replacement.

Why won't grease flow through my rigid extension pipe?

The most common cause is hardened grease blocking the bore, typically from extended storage without cleaning. Remove the extension from the gun, hold it up to light and check if you can see through the bore. If blocked, soak in solvent (mineral spirits or degreaser) for 30 minutes, then push a wire or pipe cleaner through to clear the hardened grease. If the bore is clear but grease still won't flow, the blockage is in the gun head (check the non-return valve) or the coupler (check the ball check). A rigid extension itself has no moving parts that can fail; blockages are always hardened grease deposits.

How do I attach a steel extension and prevent cross-threading?

Always hand-start the extension by turning it clockwise with your fingers for the first 2-3 turns before applying any tool or force. If the extension does not thread smoothly by hand, back it out and try again; resistance on the first turn indicates misalignment. Once hand-started, tighten firmly with a spanner or by hand until snug. Do not overtighten; the tapered thread design creates a seal through taper compression, not brute force. Cross-threading damages both the extension and the gun head threads, requiring replacement of both components.

How do I clean and prevent rust on a grease gun steel extension?

Wipe the exterior with a clean rag after each use and push fresh grease through the bore periodically to prevent old grease from hardening inside. If the extension will be stored for more than a week without use, apply a thin film of grease or light oil to the exterior zinc surface. For long-term storage (months), remove the extension from the gun, clean the bore with solvent, dry completely, apply a rust-preventive oil film, and cap both ends. The zinc plating provides baseline corrosion protection, but keeping the surface clean and lightly oiled extends the finish life in harsh environments.

How should I store a grease gun with a steel extension attached?

Store the grease gun horizontally in a dedicated holder or on a clean shelf with the extension pointing away from traffic areas. The GGH-STD grease gun holder supports the gun body securely. Cap the coupler end of the extension to prevent dust and debris from entering the bore. Unlike flexible hoses, rigid extensions do not develop memory curves from storage position, so orientation is less critical. Avoid storing where the extension tip can be knocked or bent by passing equipment or personnel.

How do I know when to replace my grease gun extension pipe?

Replace the extension when threads are visibly stripped or rounded, when the bore is permanently blocked despite cleaning, or when the pipe shows visible bending or cracking. Under normal workshop conditions, a zinc-plated steel extension lasts 5 to 10 years with proper care. Heavy daily use with frequent threading and unthreading may wear threads faster; inspect thread condition annually. If the extension leaks despite correct thread matching and proper installation, the threads are likely worn beyond sealing tolerance. Bent extensions that have been straightened should be replaced, as the metal is fatigued at the bend point.
