Grease Gun Flexible Hoses

Frequently Asked Questions: Grease Gun Flexible Hoses

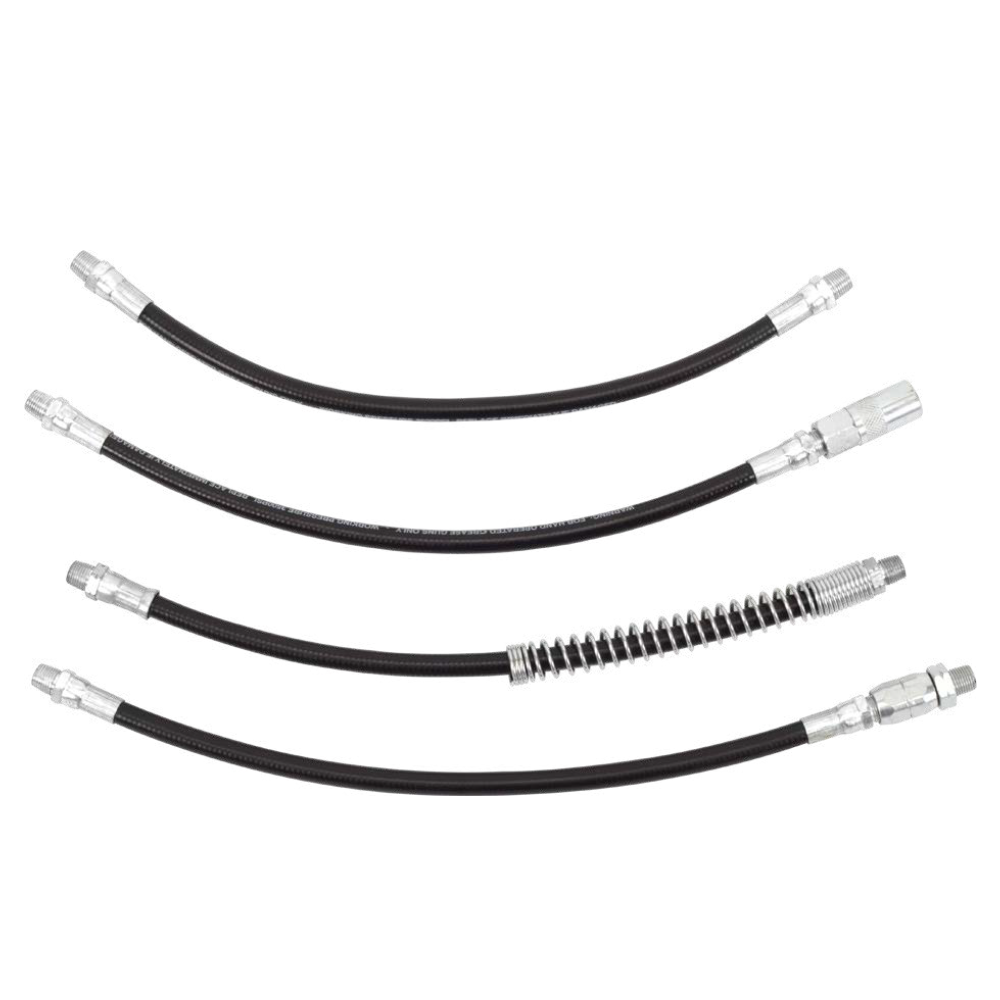

What are the STAR FS Series flexible grease gun hoses?

The FS Series is a range of professional flexible grease gun hoses manufactured by STAR in nine lengths from 6" (150 mm) to 42" (1,000 mm). Each hose is constructed with a polyamide inner tube, polyester braid reinforcement and polyurethane outer sheath. They connect between your grease gun head and the coupler or fitting, allowing you to reach grease points that a rigid extension cannot access due to obstacles in the path. Available in four variants (standard, hydraulic coupler, spring guard and swivel) with both standard and high-pressure bore options.

What pressure rating do the FS Series flexible hoses support?

The FS Series hoses are rated for the full working pressure range of manual and powered grease guns. The standard bore (3.6 mm ID) handles pressures developed by lever action and pistol grip grease guns operating up to 12,000 PSI at the gun head. The high-pressure variant (4.1 mm ID) is engineered for sustained high-flow applications including pneumatic and cordless battery-powered grease guns. Burst pressure exceeds working pressure by a significant safety margin due to the polyester braid reinforcement layer.

What is the inner diameter and flow capacity of the FS Series hose?

The standard FS Series hose has a 3.6 mm (0.13") inner diameter, while the high-pressure version has a 4.1 mm (0.16") bore. The standard bore delivers adequate flow for manual grease guns producing 1 to 2 grams per stroke. The larger high-pressure bore reduces back-pressure and allows faster grease delivery, which matters when servicing equipment with 30 or more fittings per session. Both versions maintain consistent internal diameter throughout their service life because polyamide does not swell when exposed to grease.

How do I choose the right length for my grease gun hose?

Choose based on the distance between your grease gun and the fittings you need to reach, plus enough slack to avoid sharp bends. For pistol grip guns in engine bays, 6" to 10" keeps the setup compact. For automotive chassis work under a vehicle, 12" to 18" reaches most fittings from the side. For heavy equipment with deeply recessed grease points (excavators, mining trucks, large agricultural machinery), 20" to 42" provides the reach needed without repositioning the gun. Avoid excess length, as unused hose creates loops that trap air and reduce pumping efficiency.

What thread sizes are available on the FS Series hoses?

The FS Series is manufactured with three thread options: 1/8" BSPT, 1/8" NPT and M10 x 1. BSPT (British Standard Pipe Taper) is the standard in the UK, Australia, India and most of Asia. NPT (National Pipe Taper) is the North American standard. M10 x 1 metric threads appear on European-made grease guns and some Asian equipment. All three thread types seal reliably without additional tape or sealant when properly tightened. Specify your thread requirement when ordering.

How do I reach recessed grease fittings behind panels with a flexible hose?

Thread the flexible hose through the access gap, attach the coupler to the fitting, then pump from outside the panel. The polyamide construction allows the hose to bend around obstacles without collapsing. For fittings behind engine mounts or inside chassis box sections, use a 15" or 18" hose to provide enough length to navigate the path. If the route involves sharp edges, choose the spring guard variant to prevent kinking at contact points. The swivel variant helps when the hose needs to rotate as you reposition the gun between fittings.

Which FS Series hose length works for heavy equipment maintenance?

Heavy equipment (excavators, loaders, dozers, mining trucks) typically requires 18" to 42" hoses due to deeply recessed grease points. Swing bearings, boom pivot pins and track tensioner fittings on excavators often sit 300 mm to 600 mm behind access panels. The FS-24 (24" / 600 mm) handles most construction equipment. Mining haul trucks with larger frames may need the FS-42 (42" / 1,000 mm) to reach fittings from ground level. Pair with a locking hydraulic coupler to prevent pop-off under the higher pressures needed to push grease through fittings that have sat idle between service intervals.

What is spring-braided construction and why does it prevent kinking?

The spring guard variant places an external steel coil at the bend-prone section near the gun-head end, mechanically enforcing the minimum bend radius where kinking most commonly occurs. Without a spring guard, a flexible hose can be bent past its design limit where it exits the gun head or enters the coupler, causing the inner tube to collapse and block grease flow entirely. The steel coil distributes bending force at these critical points rather than allowing a single sharp fold. This is particularly valuable when routing hoses through tight access panels on construction equipment, around hydraulic lines on agricultural machinery, or through chassis cross-members on trucks.

How do I bleed air from a newly installed grease gun flexible hose?

Disconnect the coupler from the fitting, point the hose end downward, and pump the grease gun until grease flows continuously without air bubbles. Air enters the hose during installation because the new hose is empty. Pumping with the outlet open allows air to escape ahead of the grease column. Once solid grease appears at the outlet, reconnect the coupler and resume normal greasing. If your grease gun has a bleeder valve on the head, open it briefly while pumping to release trapped air from the gun body as well as the hose.

Why is grease leaking from my flexible hose connection?

Leaking at the hose connection typically indicates a cross-threaded fitting, worn thread, or mismatched thread standard. Confirm that your hose thread (BSPT, NPT or M10 x 1) matches your grease gun outlet thread exactly. BSPT and NPT look similar but have different taper angles and will leak if mixed. If threads match but leaking persists, inspect the hose end for damage or debris in the thread. Replace the hose if the ferrule is cracked or the thread is visibly worn. Do not use excessive PTFE tape as a permanent fix for damaged threads.

When should I use a flexible hose instead of a rigid steel extension?

Use a flexible hose whenever the path between your grease gun and the fitting is not a straight line. Rigid steel extensions (the RS Series) deliver grease faster and with less trapped air because they have no bends, but they cannot navigate around obstacles. If a fitting sits behind a chassis rail, inside an engine compartment, or below a floor panel, the flexible hose is the correct choice. Many professionals carry both: a short rigid extension for accessible fittings and a 12" or 18" flexible hose for hidden ones.

How do I clean and maintain a grease gun flexible hose?

Wipe the exterior with a clean rag after each use and flush the interior with fresh grease periodically to prevent old grease from hardening inside. If switching grease types (for example, from lithium to polyurea), pump fresh grease through the hose until the old type is fully purged. Inspect the hose monthly for cracks in the outer sheath, bulges that indicate internal damage, and stiffness that suggests the polyamide has degraded. Store the hose with caps on both ends to prevent contamination and air entry.

How should I store a grease gun with a flexible hose attached?

Store the grease gun horizontally or in a dedicated holder with the hose hanging straight or in a gentle curve, never kinked or sharply bent. The GGH-STD grease gun holder supports the gun body while allowing the hose to hang freely. Avoid coiling the hose tightly around the gun barrel, as this creates a memory curve that reduces flexibility over time. Cap the coupler end to keep dust and debris out of the hose bore. Store in a dry location away from direct sunlight, as prolonged UV exposure can degrade the polyurethane outer sheath.

How often should I replace my grease gun hose and what are the warning signs?

Replace the hose when you observe cracking in the outer sheath, visible bulging, persistent leaking at the ferrule, or stiffness that prevents normal bending. Under normal workshop conditions with weekly use, a quality polyamide hose lasts two to four years. Heavy daily use in construction or mining environments with exposure to abrasion, chemicals and temperature extremes may reduce service life to 12 to 18 months. Inspect the hose before each shift by running your hand along its length and checking for soft spots, cracks or hardened sections. A hose that has kinked severely should be replaced even if it appears to still flow, as the inner tube may be partially collapsed.
