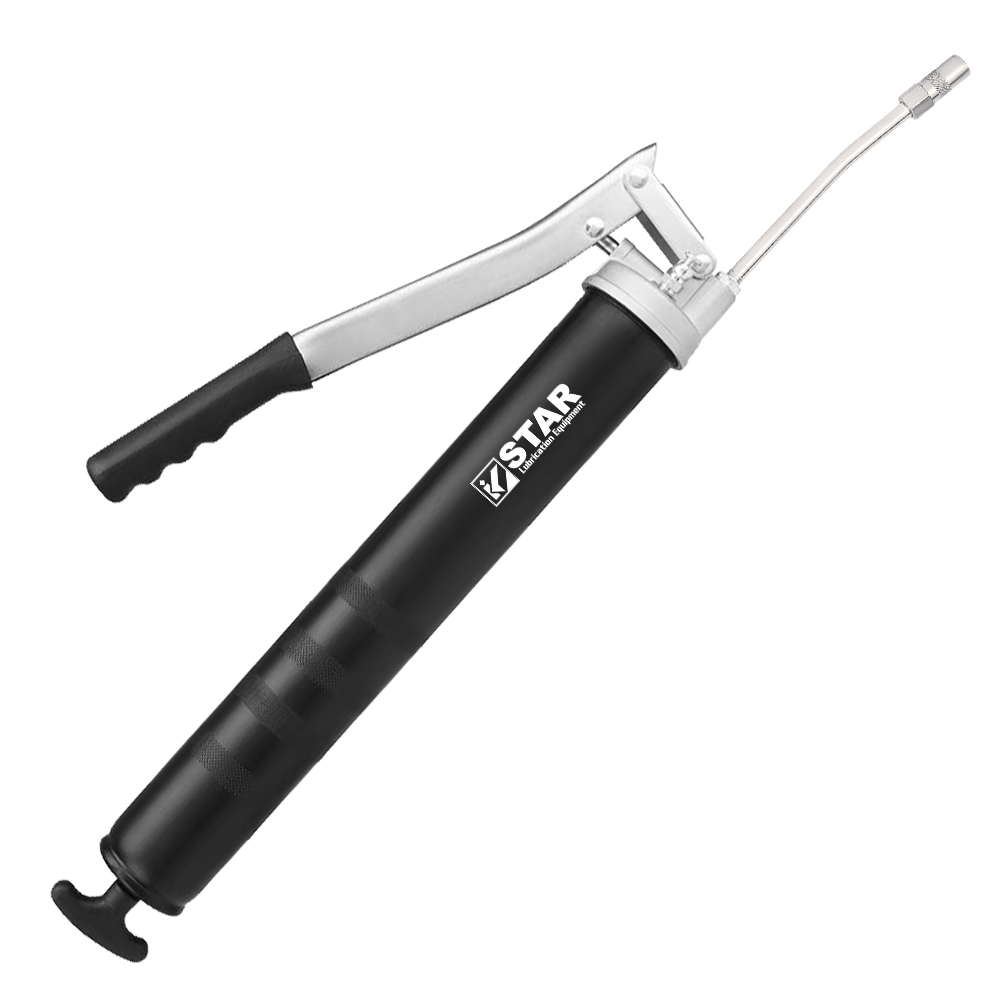

S-724DC Lever Action Grease Gun

Frequently Asked Questions: Lever Action Grease Gun

What makes a grease gun heavy duty vs standard?

Four features separate heavy-duty lever guns from standard guns: pressure rating, head construction, barrel wall thickness and loading flexibility. On the S-724DC: 10,000 PSI (690 bar) working pressure versus 6,000 PSI for standard guns, CNC-machined aluminium die cast head versus stamped-steel construction, 0.049" (1.2 mm) rolled-thread barrel wall versus 0.035" on economy guns, 4-way loading (cartridge, bulk, suction, filler pump) versus 2-way or 3-way. The S-724DC also adds variable-stroke action (full head pressure on partial lever swings) and 750 cc capacity for fleet-service reservoir size. Neither feature is standard on economy lever guns.

What does variable stroke mean on a grease gun?

Variable stroke means the S-724DC develops full 10,000 PSI head pressure on partial lever swings, not only on complete lever arcs. Fixed-stroke guns require the operator to complete a full handle swing from top to bottom to build pressure. Variable-stroke guns build pressure throughout the arc and release it whenever the non-return valve opens. This is useful on fittings with tight access clearance where a full lever swing is physically blocked. Narrow chassis channels, recessed implement linkages, tight engine-bay fittings. On these fittings, variable stroke lets the operator work the lever through whatever arc is available and still move grease at full pressure. For open-access fittings, variable stroke and fixed stroke both work identically. The advantage appears only in access-constrained situations.

How does variable stroke allow higher pressure from short strokes?

Variable-stroke mechanism uses a pawl-and-ratchet design that engages the piston on any portion of the lever arc, letting the pumping chamber compress grease whenever the lever moves in either direction. Short partial strokes still compress grease in the 40:1 mechanical advantage ratio, producing the same 10,000 PSI peak pressure as full strokes. The only difference is volume per stroke. Short strokes deliver less grease per pump but at the same peak pressure. For a tight-clearance zerk where the operator can only swing the lever through 40 percent of the full arc, variable stroke still clears the fitting at full pressure. It just takes more pumps to deliver the same total grease volume. Fixed-stroke guns cannot do this.

Can overpressure damage the die cast head?

No. The S-724DC's CNC-machined aluminium die cast head is rated to 10,000 PSI working pressure with a 4:1 safety factor, meaning the burst pressure is approximately 40,000 PSI. The working pressure rating is the continuous-operation maximum. The head is engineered to withstand that pressure indefinitely without fatigue failure. Even if the operator builds peak pressure at the non-return valve during full-swing pumping, the peak never exceeds the working rating because the lever geometry limits maximum compression. Overpressure scenarios (pumping against a fully blocked fitting) stall the lever before any damage threshold. Operators feel the lever go solid and stop pumping. The head cannot be damaged through normal operation. What can fail is the flex hose or coupler if they are already degraded.

Why is die cast head more durable than stamped steel?

CNC-machined aluminium die cast heads are cast from molten aluminium in a single-piece mold and then precision-machined to final tolerances. Stamped-steel heads are pressed from sheet stock and welded together. The die cast head has no seams, no weld lines and no stress concentrations where cracks can start. The metal grain flows continuously around the head geometry. Stamped heads have weld-line stress concentrations that fatigue over time under 10,000 PSI cycling. Die cast heads also handle pressure pulsation without distortion because the single-piece construction absorbs load evenly. Stamped heads can deform slightly at each stroke, eventually loosening at the threads. For daily-duty professional use, die cast is the premium construction. Stamped steel is the economy construction.

How to eliminate air lock in a heavy duty grease gun?

Eliminate air lock in the S-724DC in six steps. (1) Disconnect the coupler from any fitting. Next, Retract the plunger rod fully and lock it into the side slot on the 750 cc barrel. Then, Crack the head a quarter turn to open the bleed path. After that, Release the plunger rod from the side slot so the follower spring compresses the grease column. From there, Pump the lever through five to eight full strokes until grease flows from the head seam without air bubbles. Finally, Retighten the head while grease is flowing. If air lock repeats, inspect the bulk-fill packing for voids, check the plunger seal for wear, and verify the non-return valve is seating cleanly. The extended 750 cc reservoir traps more air than 500 cc guns during bulk fill.

How to fix a heavy duty grease gun that won't pump?

A non-pumping S-724DC has four possible root causes ranked by frequency. Air lock in the 750 cc reservoir. Next, stuck or hardened grease blocking the non-return valve. Then, plunger stuck in the barrel from dried grease. After that, disengaged plunger rod not pressing the follower against the grease column. Diagnostic sequence: verify the plunger rod is engaged and pressing. Bleed air per the air lock procedure. Disconnect the coupler and pump into open air to check flow at the head. If no flow at head, unscrew the head and inspect the non-return valve for contamination. Clear hardened grease with a solvent flush through the valve chamber. For a stuck plunger, slide the follower rod out and clean the barrel interior with solvent-dampened rag.

Why does my grease gun coupler keep popping off the Zerk?

Coupler pop-off on the S-724DC has three causes. Worn coupler jaws no longer gripping the zerk securely. Next, damaged or non-standard zerk fitting. Then, excessive angle between coupler and fitting during pumping. The standard hydraulic coupler shipped with the S-724DC grips most intact zerk fittings correctly. Replace the coupler if the jaws show visible wear or spring fatigue. For damaged zerks with stripped shoulders or contamination, upgrade to a 4-jaw locking coupler that grips the fitting through multiple contact points and mechanically locks. For recessed zerks where coupler access angle is tight, use a right-angle swivel coupler or pointed connector. The S-724DC accepts any STAR coupler with matching 1/8" BSPT, 1/8" NPT or M10 x 1 thread.

Can I mix different types of grease in one gun?

No. Mixing grease chemistries in the same gun can damage bearings downstream because incompatible thickeners separate and form slurry that blocks seals. Lithium complex, calcium sulphonate, aluminium complex and polyurea thickeners all use different chemistry. When combined they separate into oil and thickener phases that no longer provide lubrication. To change grease types in the S-724DC: empty the 750 cc reservoir completely, unscrew the head, wipe the barrel interior with solvent-dampened lint-free rag, solvent-clean the head internals and non-return valve, reassemble with the new grease and prime per the air-lock procedure. For fleet operations running multiple grease types, dedicate one S-724DC per grease chemistry and label each gun with chemistry and NLGI grade on visible tape.

Can it handle NLGI #2 grease in cold weather?

Yes, but cold-weather NLGI #2 performance depends on the base oil viscosity, not the thickener grade. The S-724DC operates across -10°C to +80°C with standard NLGI #2 greases. Below -10°C the grease thickens significantly and becomes difficult to pump. For sub-zero operation common in northern Europe, Scandinavia, Canadian winters and NZ alpine service, switch to NLGI #1 or synthetic PAO-based greases with pour points below -30°C. Synthetic grease maintains pumpability down to -40°C in the S-724DC without thickening in the reservoir. Never warm the gun with open flame to thin the grease. Thermal expansion of sealed reservoir can generate dangerous overpressure. Instead, store the gun in a heated compartment when not in use.

How to depressurize a heavy duty grease gun before cleaning?

Depressurize the S-724DC in three steps before any disassembly. (1) Disconnect the coupler from any fitting. Next, Retract the plunger rod fully and lock it into the side slot on the barrel. This releases follower-spring pressure from the grease column. Then, Press the bleeder valve on the head (or crack the head a quarter turn) until residual pressure escapes as a hiss. Only after these three steps is the gun safe to open. Never unscrew the head or bottom cap while the gun is under pressure. Residual 10,000 PSI stored in the chamber can expel grease and components with force sufficient to cause injection injury. Always depressurize before swapping cartridges, cleaning or replacing seals.

How often should I clean my heavy duty grease gun?

For high-volume fleet-service use (8-10 reloads per shift, 40+ fittings per day), clean the S-724DC every 60 days. For regular workshop use (2-5 reloads per shift), clean every 6 months. Routine cleaning procedure: depressurize the gun, empty the 750 cc reservoir, unscrew the head and bottom cap (if accessible), wipe the barrel interior with a solvent-dampened lint-free rag, solvent-clean the head internals and non-return valve, inspect the plunger rod seal for circumferential wear, reassemble with fresh grease lightly applied to seals. The 750 cc extended barrel retains more debris than 500 cc guns. Reach the full barrel depth when cleaning, especially the bottom third where scraper action during bulk-fill leaves residue.

How to handle grease safely (gloves, skin contact)?

Treat all grease as potentially hazardous and avoid skin contact even at atmospheric pressure. At 10,000 PSI the risks escalate: always wear nitrile chemical-resistant gloves when operating the S-724DC. Wash skin with soap and water after any grease contact. Avoid prolonged skin exposure since some grease chemistries contain additives that irritate skin over time. Never wipe grease from the coupler tip with bare fingers while the gun is pressurized. A residual pressure release can drive grease through skin. Keep eyes protected from splashback with wraparound safety glasses. If grease contacts eyes, flush with water for 15 minutes and seek medical attention. If injection injury occurs (even small visible puncture), treat as surgical emergency requiring immediate hospital treatment regardless of initial pain or swelling.

Can a heavy duty grease gun cause amputation?

Yes, in the context of untreated grease injection injury. The S-724DC at 10,000 PSI can drive grease through intact skin via a pinhole in the hose or an unseated coupler, and untreated grease injection injury can lead to tissue necrosis and amputation. The mechanism: injected grease under skin spreads along tissue planes and blood vessels, causing chemical irritation, foreign-body reaction and secondary infection. Without surgical debridement within 6-12 hours, tissue damage progresses. Amputation rates for untreated grease injection injuries are reported at 30-50 percent in medical literature. Treated promptly (within hours), outcomes are much better but still often require multiple surgeries. Any suspected injection injury requires immediate emergency-department presentation. The initial wound may look minor but the underlying damage is severe.

What is the pressure ratio of a heavy duty grease gun?

The S-724DC has a 40:1 pressure ratio. Every 1 gram of grease volume pumped through the non-return valve develops 10,000 PSI at the coupler. Pressure ratio is a fixed mechanical property of the lever mechanism and piston geometry. It does not vary with operator technique or grease type. The 40:1 ratio means that lever-arm input force is multiplied 40 times at the coupler output. Pressure ratio is the key specification that separates heavy-duty lever guns from pistol-grip guns. Pistol grips typically run 15-20:1 ratios and cannot develop the pressure needed to clear crusted zerk fittings on heavy equipment. 40:1 is the industry premium tier shared across STAR heavy-duty lever action grease guns.

Can I use a heavy duty grease gun for front end loader pins?

Yes. Front end loader pin service is a primary S-724DC application because it combines four S-724DC strengths: 10,000 PSI for crusted pins, 750 cc capacity for 30-50-fitting machines, variable-stroke access for tight-clearance pin clusters, and CNC-machined aluminium head for corrosion-resistant outdoor service. Front-end loader pin service typically runs 15-25 grease points per machine. The S-724DC covers 2-3 loaders per fill. Pin clusters on loader arms often have restricted lever-swing clearance where variable stroke earns its premium. Fixed-stroke guns can reach some pins only at awkward angles. For contractor yards handling 5-10 loaders per day across multiple operators, the S-724DC is the matched tool. For mining-scale haul trucks with 50+ fittings, step up to the S-732DC at 1000 cc.

Is a heavy duty lever grease gun suitable for mining applications?

Yes, with the caveat that mining environments favour steel-head guns over aluminium-head guns because drop exposure on mining job sites is severe. The S-724DC's aluminium die cast head is corrosion-resistant and adequate for controlled mining workshops and equipment bays, but the aluminium head can crack from drops onto mining-site concrete or crushed-rock surfaces. For field service on mining haul trucks, excavators and drilling rigs where tools get handled roughly, the forged-steel Quadra-Cut head on the S-724 (12,000 PSI, drop-resistant) or S-732 (1000 cc extra-long steel head) are better choices. For coastal mining operations (port conveyors, shiploaders), S-724DC's corrosion resistance outweighs the drop-tolerance trade-off. Pick by the dominant environmental risk.
