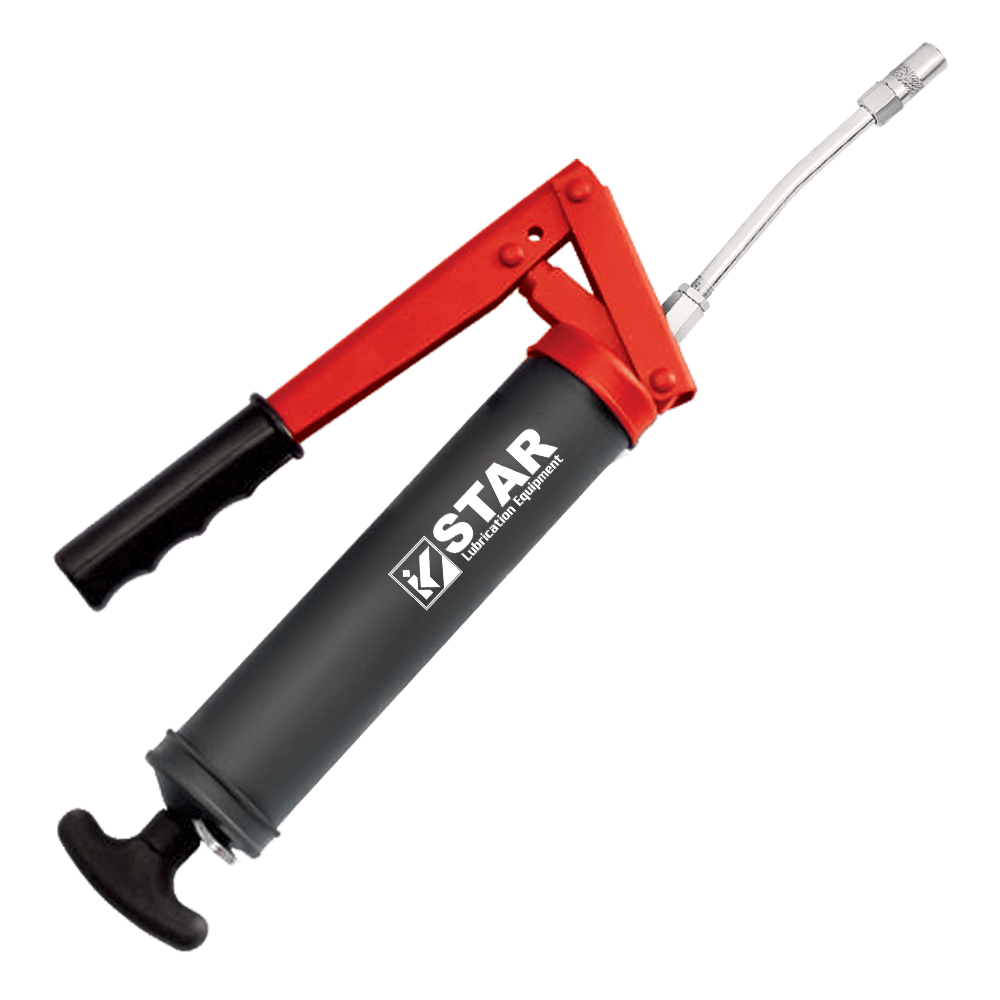

S-703S Mini Lever Action Grease Gun - Steel Head 8 oz. / 200 cc

Frequently Asked Questions: Mini Lever Action Grease Gun Steel Head 8 oz

What is a steel head mini lever action grease gun used for?

A steel head mini lever action grease gun is a heavy-duty compact lubrication tool designed to survive daily drops and toolbox impacts while delivering pro-grade 6,000 PSI pressure in a mini form factor. The S-703S is built for professionals who carry a grease gun in a service van, OEM implement toolkit, or workshop toolbox where cheaper aluminium-head minis crack after repeated drops. Common uses: motorcycle service, ATV/UTV maintenance, small tractor lubrication, rotavator and agricultural implement greasing, boat trailer bearing service, and mobile fleet mechanic work. The 8 oz. capacity covers a full machine service without reload.

What is the difference between 3000 PSI and 6000 PSI mini grease guns?

A 6,000 PSI gun like the S-703S forces grease through sealed bearings, crusted zerks, stuck ball-check fittings, and motorcycle linkage pivots that a 3,000 PSI gun (like the S-703) stalls on. 3,000 PSI is standard-duty pressure; enough for most automotive chassis joints, U-joints, tie rod ends and general-purpose greasing. 6,000 PSI is pro-grade pressure for resistant fittings and sealed-bearing applications. The trade-off: 6,000 PSI operators must stop pumping immediately when fresh grease appears at the bearing seal to avoid blowing seals. The S-703S, S-701, S-702 and S-703E all hit 6,000 PSI; only the S-703 (budget tier) runs at 3,000 PSI.

How much grease does a lever grease gun deliver per stroke?

The S-703S delivers 0.55 grams of grease per stroke, or 1 oz. (22 grams) per 40 strokes. Output matches every other STAR mini lever gun (S-701, S-702, S-703, S-703E) for consistent dosing across the range. At full 200 cc capacity, the S-703S holds approximately 360 strokes of grease. Service-planning ranges: chassis fitting = 3-5 strokes; tie rod end = 2-4 strokes; sealed bearing via zerk = 10-15 strokes; drive shaft slip yoke = 8-12 strokes. Count strokes to match equipment service manual specifications rather than pumping by feel.

How do I bulk fill a mini lever grease gun from a bucket?

To bulk-fill the S-703S from a grease pail: (1) unscrew the demountable bottom cap, (2) retract the plunger rod fully and lock it in the side slot, (3) dip the open 44.45 mm steel barrel into the grease pail pressing downward, (4) slowly release the plunger rod so grease flows into the 200 cc barrel without trapping air pockets, (5) wipe threads clean and reattach the head. Prime before use. The S-703S's 44.45 mm barrel fills in approximately 30-45 seconds from 5 kg or 18 kg grease pails. Alternatively, connect a filler pump to the bulk fill port for hands-free workshop loading.

How do I prime a mini lever grease gun for first use?

After loading the S-703S, pump the lever 3-5 times; grease should flow from the coupler on the first or second stroke. If grease does not flow within 5 strokes: loosen the steel head 1/4 turn while pumping slowly, air will hiss out followed by a bead of grease confirming the prime is clear, then retighten the head and continue pumping. The S-703S's extra-heavy follower spring applies constant pressure on the grease column, which is why priming is typically faster on the S-703S than on budget mini guns with weaker springs. If priming fails after bleeding, the barrel has an air pocket. Disassemble, pack grease manually against the follower plate, reassemble and re-prime.

Can I use a mini grease gun for motorcycle maintenance?

Yes, the S-703S is the recommended STAR mini for daily motorcycle and powersports service. The steel head survives the motorcycle toolbox environment (dropped off workbenches, thrown into saddlebags, packed in service vans). Common motorcycle grease points reachable with the 10 inch flexible hose: swingarm pivot bearings, shock linkage bearings, steering head bearings, sidestand pivots, chain adjuster threads, rear brake pedal pivots, clutch lever pivots. Use NLGI 2 lithium or moly-fortified grease for most points; marine grease for bikes ridden in wet/salt environments.

Can I use a mini grease gun for tractor and agricultural implement maintenance?

Yes, the S-703S is the heavy-duty mini of choice for tractor, rotavator, hay baler, tiller and agricultural implement greasing. We at STAR supply the S-703S as the OEM-bundled grease gun in rotavator, tractor and farm implement toolkits because the steel head survives field conditions, dropped tools, and daily service abuse. The 6,000 PSI pressure handles field-dried zerk fittings on occasional-service equipment; the 8 oz. capacity covers 15-20 typical implement fittings per load. For full-size farm tractors and combines with 30+ fittings, step up to the S-707 (14 oz.) or S-724 (24 oz.).

Can I use a mini grease gun on ATV, UTV and powersports?

Yes, the S-703S is well-suited for ATV and UTV maintenance where the gun lives in the toolbox and gets dropped during trail-side repairs. ATV grease points: A-arm bushings (front and rear), tie rod ends, ball joints, swingarm pivots, prop shaft U-joints, drive shaft slip yokes, steering knuckle fittings. The 6,000 PSI pushes grease through sealed UTV bearings; the steel head survives trail use and on-vehicle storage better than aluminium-head guns. For plowing or heavy-work UTVs, use moly-fortified grease on prop shaft U-joints for extreme-pressure protection.

Why is my mini grease gun not dispensing grease?

The most common cause is an air lock trapped in the barrel during bulk loading, preventing grease from reaching the pump chamber. S-703S diagnostic order: (1) loosen the steel head 1/4 turn while pumping until grease oozes out, then retighten; (2) if the lever still pumps empty, confirm the barrel is not empty by retracting the plunger; (3) check the head is fully threaded tight; (4) inspect the plunger rod seal for wear; (5) check the machined non-return valve for debris. The steel head's rolled threads make tight re-sealing easy, which is why S-703S priming failures usually trace back to air locks rather than thread leaks.

Why does my mini grease gun pump handle but nothing comes out?

When the lever pumps with normal resistance but no grease reaches the coupler, the cause is either a blocked coupler, a stuck fitting ball check, or grease bypassing the follower plate inside the barrel. S-703S troubleshooting: (1) disconnect the coupler and pump to test; if grease flows, the coupler or fitting is blocked; (2) if grease does not flow with coupler removed, the head outlet or non-return valve is clogged (disassemble and clean); (3) if the plunger rod extends but the barrel remains full, the follower plate seal is worn and grease is bypassing the piston (replace seal). The steel head resists wear better than aluminium heads, so this issue is less common on the S-703S than cheaper mini guns.

Is it safe to mix different grease types in the same grease gun?

No. Different grease thickeners (lithium, calcium, aluminum complex, polyurea, clay) can react chemically and form hard deposits that clog the S-703S and degrade lubrication performance. NLGI grade mixing (NLGI 1, 2, 3) within the same thickener family is usually safe. Thickener-chemistry mixing is not. If you accidentally mix incompatible greases: (1) empty residual grease via the demountable bottom cap, (2) solvent-flush the barrel and head interior with the appropriate solvent (mineral spirits for lithium, kerosene for calcium, naphtha for polyurea), (3) dry completely, (4) lightly re-grease new o-rings with fresh grease of one type, (5) reassemble and load. Workshops should keep separate labeled guns per grease type.

How often should I clean a heavy-duty mini grease gun?

Clean the S-703S every 6 months for occasional use, every 2-3 months for daily professional use, or whenever you switch grease types. The demountable bottom cap makes cleaning fast: unscrew the barrel from the steel head, wipe out residual grease with a clean rag, flush with solvent if the grease has hardened, dry completely, lightly re-grease the plunger seal and head o-rings with fresh grease, reassemble. At each cleaning, inspect the follower spring for tension loss and the plunger seal for wear (these are the first parts to fail under daily professional use). Replacement seals are available as STAR spare parts.

How do I store the S-703S between uses, including in winter?

Store the S-703S horizontally (laying flat) with the plunger rod disengaged, in a clean dry area at 5-35°C. Horizontal storage prevents oil bleed (the oil separating from the grease thickener over time), which happens faster with vertical nozzle-down storage. Disengaging the plunger releases follower spring tension, extending spring life over months of storage. For storage over 3 months: wipe exterior, remove the coupler, cap the outlet, and consider a full flush if the grease is approaching shelf-life end. Cold-weather and winter storage below -10°C: switch to NLGI 1 grease before next use, or warm the gun to 10°C before pumping. Avoid hot storage above 40°C which accelerates seal aging and grease hardening.

What safety precautions should I take when using a grease gun?

Always wear safety glasses and nitrile gloves, and never place your hand or body in front of the coupler tip or a pressurized hose. A 6,000 PSI grease injection injury is a surgical emergency: grease injected under the skin spreads along tissue planes and can cause severe damage, chemical burn, infection and amputation even from a tiny puncture. If injection happens, go to an emergency room immediately and tell staff it is a high-pressure grease injection injury; small wounds hide extensive internal damage. Inspect the 10 inch flexible hose before every use for cracks, bulges or kinks. Never bypass the coupler by pressing the gun tip directly against skin, a seal, or a bearing. Keep the gun pointed away from your body when priming.

How do I replace seals and spare parts on a mini grease gun?

The S-703S uses a plunger rod seal, a head o-ring, a follower plate seal, and a non-return valve o-ring, all replaceable with standard STAR service parts. To replace: (1) empty the gun and disassemble via the demountable bottom cap; (2) remove the plunger rod by unscrewing the plunger nut; (3) pry the worn seal from its groove with a non-sharp pick; (4) wipe the groove clean; (5) lightly grease the new seal with fresh grease; (6) press the new seal into place by hand; (7) reassemble and test. Follower springs are also replaceable if the spring loses tension after years of heavy use. Contact our service team or OEM partner network for spare part kits.

How long does a steel head mini grease gun last?

A properly maintained STAR S-703S with seal-and-spring servicing every 1-2 years lasts 10-15+ years of daily professional use. Key wear points: follower plate seal (replace every 2-3 years heavy use), plunger rod seal (replace every 2-3 years), follower spring (inspect annually, replace if tension is lost). The drop-resistant steel head, cold-drawn steel barrel, machined non-return valve and rolled threads are designed as lifetime components; they do not wear out under normal use. This is the core durability advantage over aluminium-head mini guns which can crack after toolbox drops and require full replacement.
