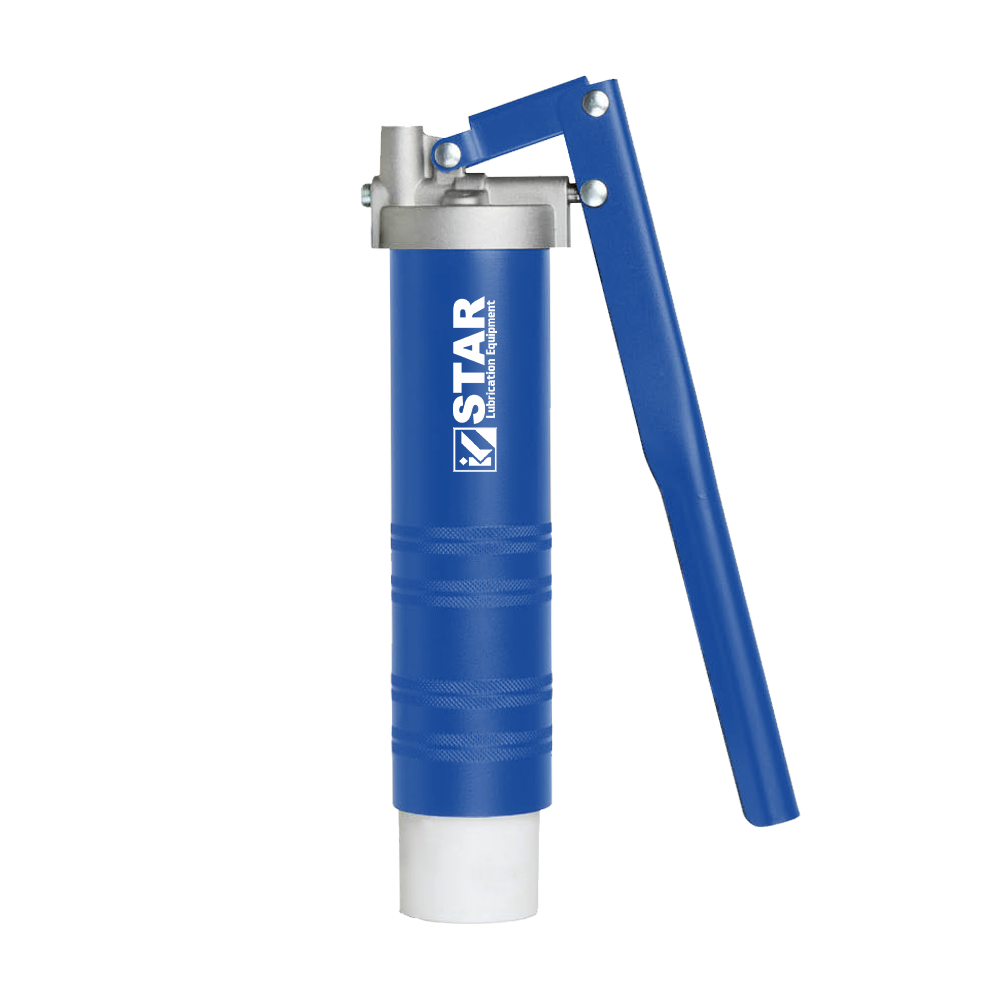

S-733 Lever Action Grease Gun

Frequently Asked Questions: S-733 Spin-On Vacuum Technology Lever Action Grease Gun

What is a spin-on grease gun and how is it different from a standard lever grease gun?

A spin-on grease gun uses a sealed vacuum-technology cartridge that threads directly onto the head, eliminating the barrel-unscrewing, plunger-retracting, and priming steps that standard tube-cartridge lever guns require at every reload. On a standard lever gun the reload workflow takes 60-90 seconds (unscrew barrel, retract plunger, insert cartridge, peel seals, reassemble, prime); on the S-733 spin-on it takes 15-20 seconds for the threaded cartridge swap. The cartridge is sealed at manufacture with a vacuum-formed interface around the grease column, so no air enters the pump cavity during the cartridge change, which is what eliminates the priming requirement.

How does vacuum technology eliminate priming in the S-733?

The spin-on cartridge body is formed with a vacuum-sealed interface around the internal grease column, so there is no air gap between the cartridge and its own grease. When the cartridge threads onto the head, the vacuum seal engages the threaded port and the grease column connects to the pump chamber with no air gap at the connection point either. On standard tube cartridges, the head must be opened to insert the cartridge, which introduces atmospheric air into the pump chamber; priming is how that air gets pumped back out. On the S-733 no atmospheric air enters because the connection is already sealed before the head is opened, so the priming step is mechanically unnecessary.

Does the S-733 really never need priming after a cartridge change?

In correct operation, yes. The first pump of the lever after a fresh spin-on cartridge is installed should dispense grease without any priming stroke. The exceptions are edge cases: if the cartridge is expired (rare) and the vacuum seal has failed during storage, priming behaviour degrades toward the standard-gun pattern; if the cartridge isn't fully threaded onto the head (operator error) and the seal doesn't engage, priming is needed to push air out of the gap. In normal service with correctly-stored fresh cartridges from the standard spin-on grease supply chain, the first-pump-dispensing behaviour is reliable and the operator never needs to go through the priming workflow.

Does the S-733 support bulk loading or only cartridge loading?

Cartridge loading only. The S-733 is deliberately single-format by design: the head's threaded spin-on port is incompatible with bulk-grease inlets, and the spin-on cartridge workflow is the core value proposition. Adding bulk-fill capability would require a different head architecture that breaks the spin-on vacuum seal, defeating the point of the S-733. For operators who need bulk loading alongside cartridge use, the 4-way loading S-706 (medium duty 6,000 PSI) or S-707 (heavy duty 12,000 PSI) are the correct picks; these cover cartridge plus bulk plus suction plus filler pump formats at the respective pressure tiers.

What grease cartridges are compatible with the S-733 spin-on head?

Any standard spin-on vacuum-technology cartridge with the matching thread profile will fit the S-733 head. Spin-on cartridges are supplied by major grease manufacturers and distributed through automotive-parts trade channels in most export markets. The thread profile is a standard spin-on thread that is not unique to any one brand; operators can source cartridges from whichever grease supplier their workshop or depot already uses, provided the supplier stocks the spin-on format. Standard tube cartridges (14 oz. / 400 g worldwide tube format) will NOT fit the S-733: they are a different physical format without the threaded interface. The S-733 cannot be converted to use tube cartridges.

Why is the S-733 rated at 6,000 PSI instead of the 12,000 PSI of heavy-duty guns?

6,000 PSI is matched to the workshop and automotive-service use case where the spin-on cartridge workflow delivers its value. Workshop buyers typically don't need 12,000 PSI because they service clean, regularly-maintained zerks rather than crusted outdoor-exposed fittings. Heavy-duty 12,000 PSI guns are designed for mining haul trucks, broadacre farm tractors, and construction equipment where fittings dry and crust between services; those service scenarios rarely use the cartridge-only loading format because bulk-fill economics dominate at fleet scale. The 6,000 PSI rating and the spin-on cartridge format together define the S-733 as a workshop and retail product, not a heavy-duty fleet tool.

Is 6,000 PSI safe for bearing seals on regular service?

Yes. Bearing seals typically fail at internal grease-cavity pressures of 500 to 1,500 PSI, far below the 6,000 PSI maximum the S-733 can develop at a fully blocked fitting. Actual pressure reaching the bearing seal depends on the fitting's flow restriction: a clean zerk on a healthy bearing passes grease at low pressure. The 6,000 PSI specification is the maximum the pump can build when the coupler is blocked, not the steady-state pressure reaching the bearing. To prevent over-greasing, stop pumping the moment fresh grease appears at the bearing seal or the lever resistance sharply increases.

Can the S-733 cause a grease injection injury at 6,000 PSI?

Yes. Grease injection injuries from 6,000 PSI grease guns are documented in emergency medicine and require immediate surgical treatment regardless of the pressure tier. A pinhole in the hose or unseated coupler can drive grease through intact skin at 6,000 PSI. The initial wound looks like a tiny puncture and often does not hurt much initially; grease then migrates along tissue planes and causes chemical damage that becomes visible as swelling, colour change, and infection over 24-72 hours. Go to an emergency department immediately for any suspected injection injury, brief the staff it is a high-pressure grease injection (not a simple puncture), and do not wait for pain to develop. Untreated grease injections can progress to tissue necrosis and amputation.

What PPE is required when using the S-733 at full service pressure?

Mandatory: wraparound safety glasses (ANSI Z87.1+ impact-rated), nitrile chemical-resistant gloves, long sleeves, and closed-toe shoes at minimum. Safety rules: never point the coupler or flex hose at any body part, keep the non-lever hand behind the coupler head during pumping, inspect the hose and coupler before each use for visible damage, never test grease flow by pressing the coupler against skin or fabric. At 6,000 PSI a pinhole in the hose or unseated coupler can drive grease through intact skin. The PPE requirement is pressure-tier-based, not cartridge-type-based: the spin-on cartridge format does not change what PPE is needed versus a standard cartridge gun at the same pressure rating.

How much faster is a cartridge change on the S-733 compared with a standard lever gun?

Approximately 4-5 times faster. The S-733 cartridge swap takes 15-20 seconds versus 60-90 seconds on a standard tube-cartridge lever gun. The time saving comes from skipping the barrel-unscrewing, plunger-retraction, seal-peeling, reassembly, and priming steps that standard tube cartridges require. For operators doing one cartridge change per service session this doesn't matter much; for operators doing 5-10 changes across a shift (typical in busy automotive workshop bays), the cumulative time saving is 5-10 minutes per operator per day. Over a 5-day working week that is roughly 30-50 minutes of recovered productive time per operator.

Does the S-733 waste less grease per cartridge than a standard cartridge gun?

Yes. The spin-on vacuum-seal cartridge extracts approximately 95-98 percent of its grease, versus 85-90 percent for standard tube cartridges. Standard tube cartridges leave grease behind because the rigid plunger rod cannot press fully to the end of the tube; the spin-on cartridge is vacuum-formed so the seal pulls grease out of the cartridge body through the threaded port as the pump draws it. Over a year of high-volume workshop service (say, 100-200 cartridges consumed), the 5-10 percent extra utilisation adds up to 5-20 cartridges' worth of grease saved, which has measurable value on grease-supply economics.

Can I use the S-733 for tractor, automotive chassis, and trailer service?

Yes for all three, provided the fittings are clean and well-maintained. 6,000 PSI handles standard zerks on compact tractors, automotive chassis, suspension service, trailer king pins, and light agricultural equipment. The spin-on cartridge workflow is well-suited to retail-customer service where the operator changes cartridges frequently between different vehicles; not having to prime between cartridges saves measurable time on multi-vehicle service days. For outdoor-exposed equipment with crusted zerks, the 6,000 PSI may not reliably clear the crust and step up to the heavy-duty range is warranted; for regular maintenance service on cleaner fittings, the S-733 is correctly sized.

Is the S-733 suitable for heavy construction or mining equipment service?

Not recommended. Heavy construction and mining equipment have fittings that routinely crust from outdoor exposure between service cycles, and the 6,000 PSI of the S-733 may refuse to push fresh grease through a crusted zerk. Additionally, heavy-equipment service typically prefers bulk-fill economics over cartridge costs because the grease volumes consumed are high; the S-733's cartridge-only loading doesn't match that service profile. For heavy construction and mining, step up to the 12,000 PSI S-707 flagship with 4-way loading including bulk fill, or to the heavy-duty wide-barrel range for Australian/NZ 450 g cartridge markets. The S-733 is deliberately a workshop and retail product.

How should I store the S-733 between service cycles?

For storage under 30 days: leave a spin-on cartridge threaded onto the head (the vacuum seal prevents grease oxidation), cap the coupler, store horizontally in a clean dry area. For storage over 30 days: unthread the cartridge and store separately, wipe the head's threaded port with a lint-free rag, cap the port with the supplied plastic cap, and store the gun horizontally. The vacuum seal on a threaded-on cartridge keeps grease fresh longer than standard tube cartridges sitting in a gun with exposed follower-plate contact, which is another operational benefit of the spin-on format. Always store out of direct sunlight to prolong powder-coat and hose-rubber lifespan.

Can the S-733 be rebuilt with standard STAR spare parts?

Partially. The head's spin-on port thread, the spin-on-specific seal, and the vacuum interface components are specific to the S-733 architecture; the non-return valve, coupler, hose, and steel extension are common with other STAR lever guns. Rebuild kits for the S-733 are supplied from the STAR spare parts catalogue including the spin-on-specific port seal. Typical wear-part lifespan at regular workshop service: port seal 3-5 years, non-return valve 5-8 years, hose and coupler 3-4 years. For distributors stocking the S-733, carrying the spin-on-specific rebuild kit as a separate SKU alongside general STAR seal kits covers all rebuild scenarios.

Is the S-733 available for OEM and private-label orders to distributors?

Yes. OEM and private-label manufacture is available on the S-733 including custom branding, packaging design for retail or automotive-trade format, and kit configuration per agreement. MOQ depends on customisation level: product-level rebranding (logo and packaging only) has a lower MOQ than full thread or kit-spec customisation. The S-733 is a particularly strong fit for automotive-parts retail chains and hardware retail trade because the priming-free workflow is the headline retail-facing feature. Shipping is sea freight to major ports worldwide with mixed-container consolidation across other STAR products possible to hit MOQ thresholds economically. Contact the STAR export team for distributor pricing, lead times, and packaging specifications.

How long does a spin-on grease cartridge last in storage and how do I tell when it's empty?

A sealed spin-on vacuum cartridge in clean dry storage typically retains grease quality for 18-24 months from manufacture date; a 14 oz. / 400 g cartridge in active use dispenses approximately 450 pump strokes before empty. To tell when a cartridge is empty on the S-733: the lever resistance drops sharply on the final strokes because the vacuum seal has fully collapsed and the pump chamber is no longer receiving grease. At that point unscrew the empty cartridge from the head and install a fresh one. Cartridges that have been sitting in the gun between service sessions still work provided the vacuum seal hasn't been compromised (shock damage, over-tightening, or cold-cycling the gun in utility-vehicle beds can compromise the seal). Check the manufacture date on the cartridge before installing after long storage; cartridges past 24 months typically show degraded priming behaviour as the vacuum seal loses integrity. Store spare cartridges indoors at room temperature out of direct sunlight for maximum shelf life.
