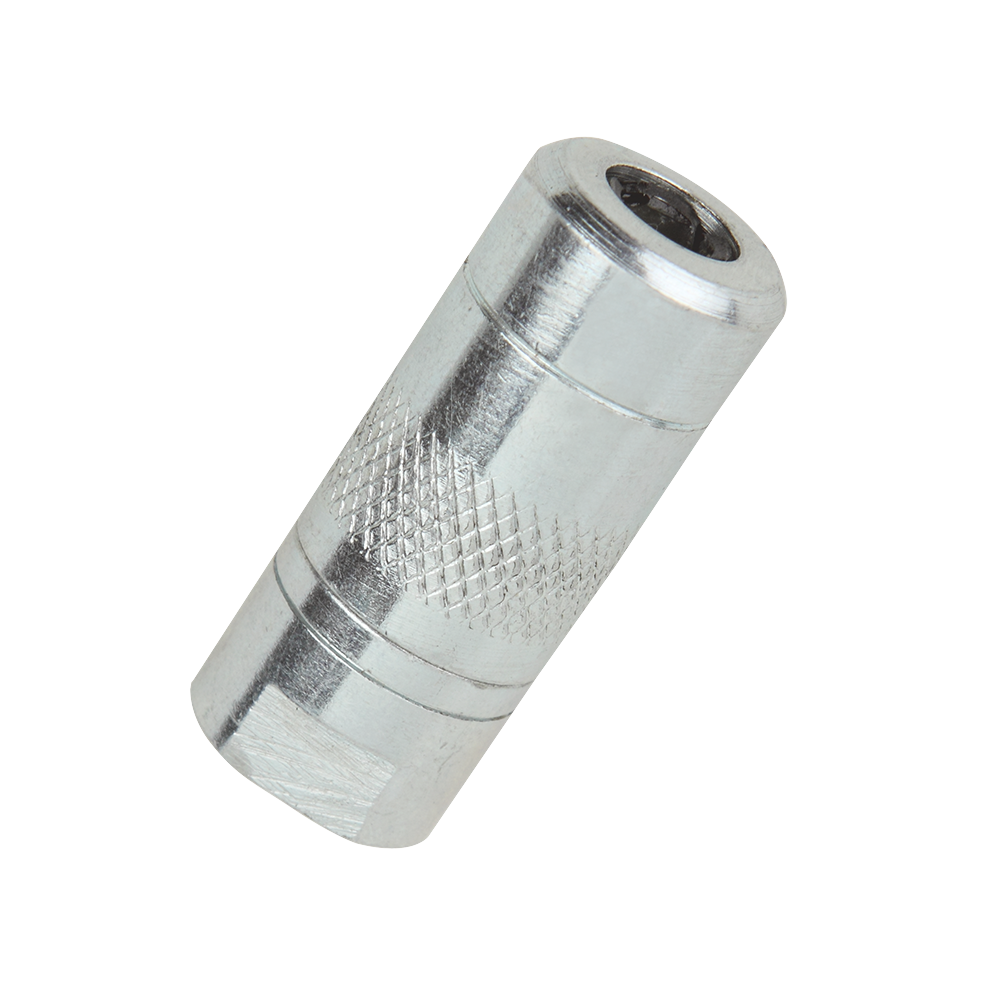

HC-01 Hydraulic Coupler

Frequently Asked Questions: HC-01 Hydraulic Coupler

What is a hydraulic coupler on a grease gun?

A hydraulic coupler is the connector at the end of a grease gun hose or extension that attaches to the grease nipple (zerk fitting) on machinery. The HC-01 uses hardened spring steel jaws that snap over the nipple head and create a sealed connection so grease flows into the bearing or joint at up to 6,000 PSI without leaking. It is the most common coupler type supplied with manual lever action and pistol grip grease guns worldwide.

What pressure rating does the HC-01 coupler handle?

The HC-01 is rated at 6,000 PSI (413 bar), which covers the working pressure of most manual grease guns. Standard lever action grease guns develop between 6,000 and 12,000 PSI depending on the model. The HC-01 handles the full output of guns rated up to 6,000 PSI without risk of seal failure. For grease guns rated above 6,000 PSI (such as the S-707 at 12,000 PSI), the coupler still functions safely because the coupler sees only the pressure that reaches the fitting, not the full pump pressure.

What is the difference between 3-jaw and 4-jaw grease couplers?

A 3-jaw coupler has three spring-loaded jaws that grip the zerk fitting, while a 4-jaw coupler has four jaws for more even grip distribution. The 4-jaw design centres better on the nipple, reduces the chance of popping off under pressure, and provides a more reliable seal on worn fittings. The 3-jaw design is slightly easier to push onto fittings in confined spaces. For most applications, 4-jaw is the standard recommendation because it reduces grease waste from pop-offs during service.

How do I choose between BSPT, NPT and M10x1 thread?

Match the coupler thread to your grease gun hose or extension thread. BSPT (British Standard Pipe Taper) is standard in the UK, Australia, India and most of Asia. NPT (National Pipe Taper) is standard in North America. M10x1 metric is used on European and some Asian equipment. The threads are not interchangeable without an adapter because BSPT uses a 55-degree thread angle while NPT uses 60 degrees. Check your existing coupler or hose fitting to confirm which thread your gun uses before ordering.

Why does my grease coupler keep popping off the zerk fitting?

The most common causes are worn coupler jaws, a clogged or damaged zerk fitting, excess pressure buildup, or using a 3-jaw coupler where a 4-jaw would grip better. First inspect the zerk fitting: if the internal ball check is stuck open, pressure builds behind the coupler and pushes it off. Clean or replace the fitting. If the coupler jaws are visibly worn or spread, replace the coupler. Switching from 3-jaw to 4-jaw often solves persistent pop-off problems. For a permanent solution on high-pressure applications, upgrade to the QRC-01 locking coupler.

Can I use the HC-01 on recessed or hard-to-reach grease fittings?

The HC-01 has a narrow body profile designed for limited-access fittings, but it still requires straight-on access to the nipple head. For fittings recessed inside pin bores or behind structural members where you cannot push straight on, use pointed connectors (S-C1 or S-C2) which have a slim profile that reaches into tight recesses. For fittings at awkward angles, the HC-05 right angle coupler provides 90-degree discharge. The HC-01 works well for fittings that are accessible head-on but surrounded by nearby components.

Is a zinc plated or chrome plated coupler better for outdoor use?

Chrome plating provides superior corrosion resistance compared to zinc plating, making it the better choice for marine environments, food processing plants, coastal workshops and any location with high humidity or chemical exposure. Zinc plating is adequate for indoor workshops and dry environments. For general outdoor use in temperate climates, zinc plating performs well. For salt air, washdown areas or corrosive industrial environments, chrome plating extends coupler life significantly.

How does a spring-loaded ball check valve work in a coupler?

The ball check valve is a small steel ball held against a seat by a spring inside the coupler body. When grease pressure from the pump exceeds the spring force, the ball lifts off the seat and grease flows through to the fitting. When pumping stops, the spring pushes the ball back onto the seat, sealing the passage. This prevents grease from dripping out of the coupler between strokes and retains pressure in the hose. Couplers without ball check are available for applications where free-flow is preferred.

How often should I replace a grease coupler?

Replace the coupler when the jaws no longer grip the zerk fitting securely, when grease leaks around the connection despite a clean fitting, or when the ball check valve fails to hold pressure. In a busy workshop greasing 20+ machines daily, couplers typically last 6 to 12 months before jaw wear causes pop-offs. In lighter-duty use (weekly greasing), a coupler can last 2 to 3 years. Inspect the jaws monthly for visible wear, chips or permanent spread. A worn coupler wastes more grease and time than it costs to replace.

Can I use the HC-01 coupler on a pneumatic grease gun?

Yes, the HC-01 threads onto any grease gun hose or extension with a matching 1/8" BSPT, NPT or M10x1 female thread, including pneumatic (air-operated) grease guns. Pneumatic guns typically develop higher flow rates but similar fitting pressures to manual guns. The HC-01's 6,000 PSI rating is adequate for most pneumatic applications. For pneumatic guns rated above 6,000 PSI at the coupler, consider the HC-03 Heavy Duty (10,000 PSI) or QRC-01 (12,000 PSI).

What causes a grease coupler to leak around the fitting?

Leaking around the coupler-to-fitting connection is usually caused by worn jaws that no longer seal tightly, a damaged or corroded zerk fitting, or grease buildup preventing full jaw engagement. Clean the zerk fitting head with a rag before connecting. If the fitting ball check is stuck, grease backs up and leaks around the jaw seal. Replace damaged fittings. If the coupler jaws are worn smooth, replace the coupler. Over-tightening the jaw adjustment can also cause leaks by deforming the jaw tips.

How do I remove a coupler that is stuck on a zerk fitting?

Grip the coupler body firmly and pull straight back with a slight twisting motion. If it remains stuck, the internal pressure may be holding it on: relieve pressure by loosening the grease gun bleeder valve or disconnecting the hose at the gun end. For severely stuck connections (corroded fitting or damaged jaws), use pliers on the milled slot at the coupler end to twist and pull simultaneously. Avoid pulling at an angle, which can damage both the coupler jaws and the zerk fitting threads.

Are all grease gun couplers interchangeable?

All couplers with matching thread size (1/8" BSPT, NPT or M10x1) will screw onto any grease gun hose or extension with the same thread. The jaw end is universal and fits standard DIN 71412 grease nipples regardless of equipment brand. However, different coupler types (standard, heavy duty, quick release, right angle) have different pressure ratings and engagement mechanisms. The HC-01 is the most widely compatible standard coupler for general-purpose greasing.

What safety precautions apply when using a high-pressure grease coupler?

Always wear safety glasses and keep hands clear of the coupler tip during pumping. At 6,000 PSI, grease injection through skin is a serious medical emergency requiring immediate hospital treatment. Never place fingers over the coupler opening to test for flow. Inspect the hose for cracks or bulges before each use. Ensure the coupler is fully seated on the fitting before pumping to prevent side-spray. If the coupler pops off under pressure, grease can spray at high velocity. Replace worn couplers promptly to prevent unexpected disconnection.
