GGH-HD Grease Gun Holder

Frequently Asked Questions: Grease Gun Holder Heavy Duty

What is the GGH-HD heavy duty grease gun holder?

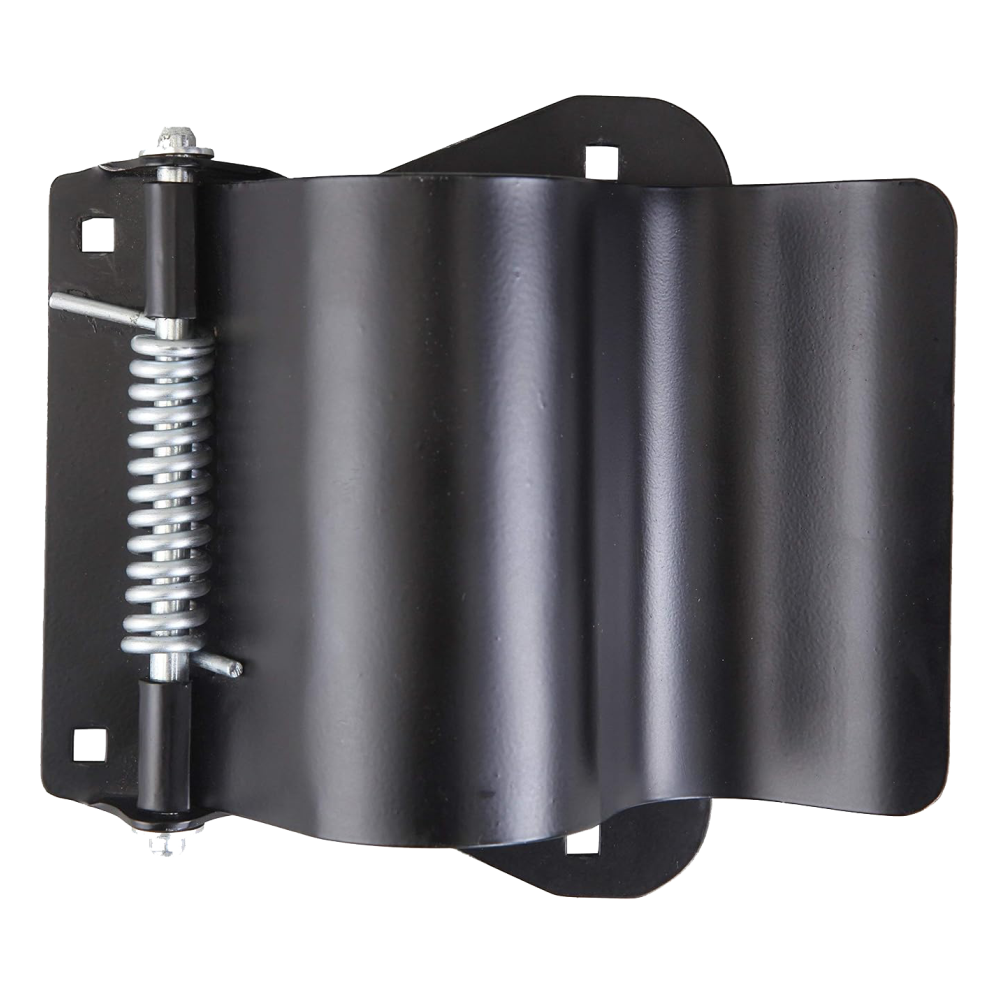

The GGH-HD is an all-steel heavy duty grease gun holder with 4-bolt mounting pattern, engineered for high-vibration environments where standard holders fail. It uses a reinforced snap-action clamp with heavy-duty spring to retain grease guns securely on service trucks, trailers, tractor cabs and heavy equipment frames during transit and operation. Accommodates barrel diameters from 57.15 mm (2-1/4") to 63.5 mm (2-1/2"). Zinc plated finish for outdoor corrosion resistance. Mounting hardware not included.

Why does the GGH-HD use a 4-bolt mounting pattern?

The 4-bolt pattern distributes vibration load across four anchor points rather than two, preventing the single-point fatigue failure that causes standard 2-bolt holders to loosen on trucks. Each bolt carries one quarter of the shear load instead of one half. Under sustained vibration from diesel engines (15-60 Hz) and rough terrain driving, 2-bolt mounts develop fatigue cracks at the anchor points within 6-12 months. The 4-bolt pattern extends mount life by 3-4 times in mobile applications, making it the correct choice for any surface that moves or vibrates.

Will the GGH-HD stay secure in high-vibration environments?

The GGH-HD is specifically designed and tested for high-vibration retention on service trucks, trailers and heavy equipment. The combination of 4-bolt mounting (prevents bracket loosening), heavy-duty spring (prevents gun rattling free), and all-steel construction (prevents bracket deformation) addresses all three failure modes that defeat standard holders in mobile environments. Use lock washers on all four bolts for additional vibration resistance. The gun cannot fall free unless the clamp is deliberately released by thumb pressure.

What barrel diameter fits the GGH-HD holder?

The GGH-HD accommodates grease guns with barrel diameters from 57.15 mm (2-1/4") up to 63.5 mm (2-1/2"). This covers all standard 14 oz. cartridge guns (57.15 mm barrel), all pistol grip models, and the wider 63.5 mm Australian and New Zealand market guns (S-710 family with 450 g cartridge). Mini grease guns with smaller barrels also fit because the snap-action clamp adjusts to grip smaller diameters. The wider jaw opening compared to the GGH-STD is what makes the HD model compatible with wide-barrel guns.

Where should I mount the GGH-HD on a service truck?

Mount on the truck bed rail (driver side), inside the service body on a vertical panel, or on the behind-cab rack for easy access without climbing onto the bed. Position so the grease gun barrel points toward the rear (away from cab) to prevent the coupler from contacting other tools during transit. Use all four bolts with lock washers. Ensure the gun can be removed and replaced with one gloved hand while standing at the side of the truck. Avoid mounting where the holder could be struck by sliding cargo or equipment being loaded.

Can I mount the GGH-HD on an excavator or heavy equipment?

The GGH-HD mounts on any steel or aluminium surface that accepts four bolts, including excavator cabs, loader frames, dozer operator stations and crane cabs. Drill four holes matching the bolt pattern, insert bolts from the back, and tighten with lock washers and nuts. On equipment with significant vibration (compactors, rock breakers, vibratory rollers), check bolt tightness monthly for the first three months, then quarterly. The all-steel construction handles the impacts common in heavy equipment environments without deforming.

What makes the GGH-HD suitable for mobile farm equipment?

Farm equipment operates on rough terrain, generates sustained engine vibration, and exposes accessories to rain, mud, dust and chemical splatter daily. The GGH-HD addresses all of these: the 4-bolt mount handles terrain vibration, the heavy-duty spring retains the gun over paddock tracks, the zinc plating resists moisture and agricultural chemicals, and the all-steel body survives impacts from implements and loading equipment. Mount on tractor cab frames, header trailer rails, or workshop posts near the machinery shed entrance for grab-and-go access during daily greasing rounds.

When should I choose the GGH-HD over the GGH-STD?

Choose the GGH-HD whenever the mounting surface vibrates, moves, or is exposed to harsh outdoor conditions. Specific scenarios: service trucks (road vibration), trailers (towing vibration), tractor cabs (engine vibration), excavator frames (digging vibration), mobile lube units (transit vibration), outdoor posts (weather exposure), and any location where tools or equipment may strike the holder during loading operations. The GGH-STD is sufficient for stationary indoor workshop walls, workbenches and pegboard where vibration is absent.

How do I install the GGH-HD and what hardware do I need?

The GGH-HD ships as the holder only; you supply four mounting bolts, nuts, lock washers (recommended) and drill the four mounting holes in your chosen surface. Mark the 4-bolt pattern on the mounting surface, drill clearance holes, insert bolts from the back side, place the holder bracket over the bolts, add lock washers and nuts, and tighten evenly. For steel surfaces, use appropriate grade bolts. For aluminium, use stainless steel bolts to prevent galvanic corrosion. Torque evenly across all four bolts rather than fully tightening one at a time.

Is the GGH-HD weather resistant for outdoor mounting?

The zinc plated finish provides genuine weather resistance for outdoor mounting, including direct rain, road salt and UV exposure. Unlike powder coating (which chips on impact and allows rust underneath), zinc plating provides sacrificial corrosion protection that continues working even through scratches and chips. The GGH-HD is suitable for fully exposed outdoor mounting on truck beds, trailer rails and equipment frames without additional protective coating. In coastal salt-spray environments, rinse with fresh water quarterly to extend zinc life.

Will the heavy duty spring lose tension over time?

The heavy-duty spring is designed for thousands of open/close cycles and years of sustained vibration without significant tension loss. Under normal service truck use (2-4 gun retrievals per day, sustained road vibration), expect 8-10 years before noticeable tension reduction. If the clamp no longer holds the gun securely after years of use, the spring can be replaced without replacing the entire holder. Signs of spring fatigue: gun rattles in the clamp during driving, or the clamp does not click positively when closing.

What are the safety benefits of securing a grease gun in a holder?

An unsecured grease gun on a truck bed or equipment cab becomes a projectile during sudden braking, cornering or equipment operation. A loaded grease gun weighs 1.5 to 2.5 kg and can cause injury or damage equipment if it slides or falls during transit. The GGH-HD eliminates this risk by locking the gun in place mechanically. Additional safety benefits: prevents accidental coupler discharge from the gun being knocked, keeps the coupler clean and capped to prevent contamination, and positions the gun for safe one-handed retrieval without reaching into cluttered tool compartments.

Can the GGH-HD hold a 63.5 mm wide-barrel grease gun?

Yes, the GGH-HD clamp jaw opens to accommodate barrels up to 63.5 mm (2-1/2") diameter, which is the Australian and New Zealand market standard. This covers the STAR S-710 family (S-710, S-710L, S-710L/PRO, S-710DC) and equivalent wide-barrel guns from other manufacturers that use the 450 g cartridge format. The GGH-STD standard model does not open wide enough for 63.5 mm barrels, making the GGH-HD the required choice for workshops and service vehicles carrying wide-barrel guns.

Can I store a cordless battery grease gun in the GGH-HD?

Yes, the GGH-HD holds cordless grease guns provided the barrel section falls within the 57.15 mm to 63.5 mm range. Most cordless guns have standard-diameter barrels with the battery and motor housing behind. The clamp grips the barrel section; the battery housing hangs below or behind the holder. The heavy-duty spring and 4-bolt mount handle the additional weight of battery-powered guns (typically 3-5 kg loaded) without issue. Ensure the battery housing does not contact the mounting surface or interfere with adjacent tools.
