S-504/KIT Foot Operated Air Pump Repair Kit

Frequently Asked Questions: S-504/KIT Foot Pump Repair Kit

What is included in the S-504/KIT foot pump repair kit?

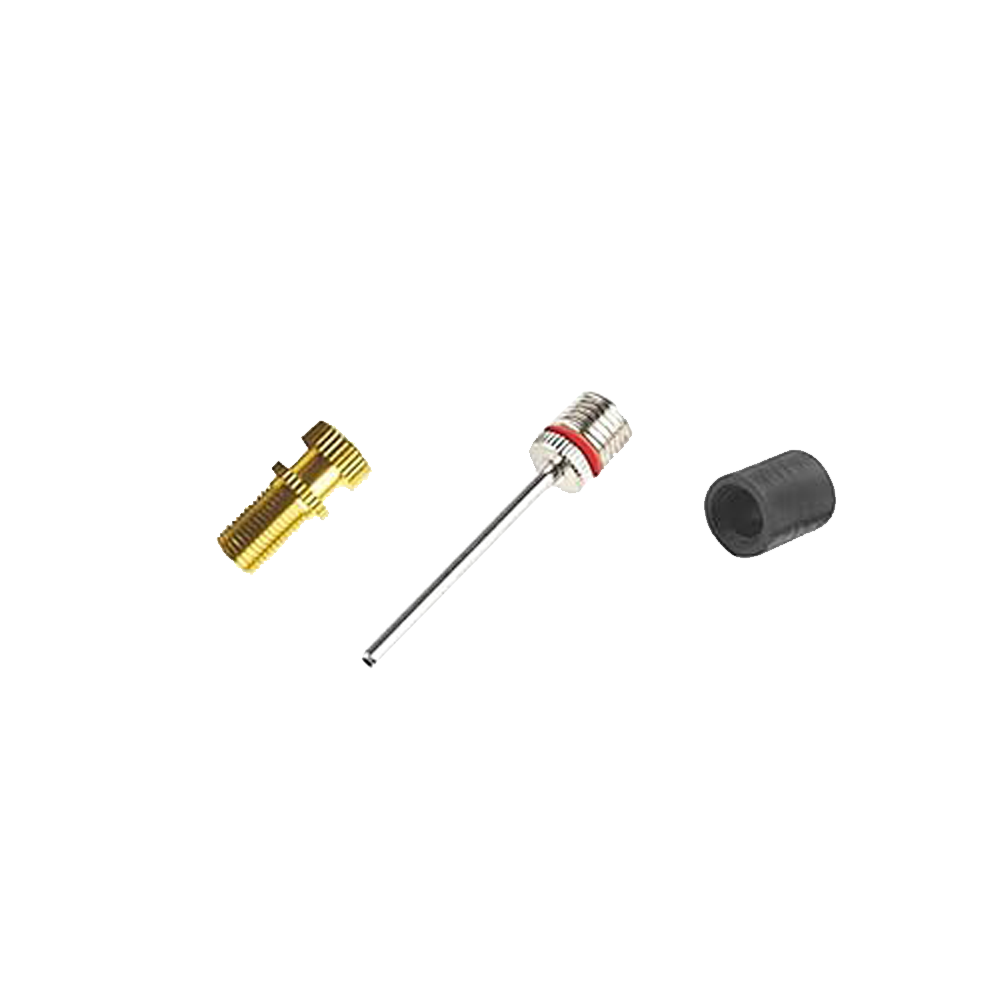

The S-504/KIT contains four components: a nitrile rubber nozzle bush, a brass cycle nozzle, a piston ring and a heavy-duty football pin. The nozzle bush seals the hose-to-valve connection and prevents air leaks during inflation. The brass cycle nozzle adapts the pump for Schrader bicycle valves. The piston ring restores the cylinder seal when the original wears, bringing back full 325 cc output per stroke. The football pin handles sports ball inflation. Together, these cover the most common wear and adapter needs for the S-504 pump.

Can I buy foot pump replacement parts separately or only as a kit?

The S-504/KIT is sold as a complete set containing all four components. For bulk or OEM buyers who need individual components in quantity (piston rings only, or nozzle bushes only), custom configurations are available on request with minimum order quantities. For single-unit retail buyers, the kit format ensures you have all common wear parts and adapters in one purchase, which is more practical than sourcing individual seals.

How do I know when the piston ring needs replacing?

The clearest sign is reduced pump output: the pedal feels easier to push but the pressure gauge climbs slowly or not at all. This happens because the worn ring allows air to bypass the piston instead of being compressed into the hose. You may also hear a faint hissing from inside the cylinder during the downstroke. Under weekly workshop use, expect the piston ring to last 2-3 years before replacement is needed. In dusty environments (farms, construction sites), grit accelerates wear and the ring may need replacing after 12-18 months.

How do I replace the piston ring on the S-504 foot pump?

Remove the foot pedal assembly, slide the piston out of the cylinder, peel off the worn ring and fit the new one into the piston groove. Ensure the ring seats evenly around the full circumference without twists or gaps. Reassemble the piston into the cylinder, reattach the pedal mechanism, and test with a few unloaded strokes. The entire process takes 2-3 minutes with only a standard screwdriver. No specialist tools or workshop equipment are required.

Can I repair a foot pump that has lost suction, or should I replace it?

In most cases, lost suction is caused by a worn piston ring or a hardened nozzle bush, both of which the S-504/KIT fixes. If the pedal feels soft with no resistance, the piston ring has worn and air is bypassing the seal. If air leaks at the hose connection point, the nozzle bush has lost its elasticity. Both are 2-3 minute replacements. Only replace the entire pump if the steel cylinder bore is scored, the foot pedal hinge is cracked, or the base frame is structurally damaged.

How often should I replace foot pump seals and wear parts?

For preventive maintenance, replace the piston ring every 18-24 months under daily workshop use, or every 3 years for occasional home garage use. The nitrile nozzle bush lasts 2-3 years under normal conditions but degrades faster in environments with petroleum solvents or prolonged UV exposure. The brass cycle nozzle and football pin are not wear parts in the traditional sense; replace them only if threads become stripped or the pin bends from misuse.

Is the S-504/KIT compatible with other foot pump brands?

The S-504/KIT is manufactured specifically for the STAR S-504 Foot Operated Air Pump with its 63.5 mm cylinder bore. The piston ring is dimensioned to fit the S-504 cylinder precisely. The nozzle bush fits the S-504 hose connector housing. While the brass cycle nozzle and football pin use standard thread sizes that may physically fit other pumps, we cannot guarantee seal quality or performance on non-STAR equipment. For confirmed compatibility, use with the S-504 only.

Where can I buy S-504 foot pump replacement parts?

The S-504/KIT is available through STAR distributors, authorised hardware retailers and directly from Khatu Impex for bulk orders. For retail quantities, check with your local auto parts store or hardware shop that stocks STAR products. For wholesale, OEM or distributor enquiries, contact our sales team directly. The kit is stocked internationally and ships with full export documentation.

Can I use silicone grease on the new piston ring after installation?

Yes, applying a thin film of silicone grease to the new piston ring before installation helps it seat smoothly and extends its service life. Silicone grease is compatible with the nitrile rubber compound and does not degrade the seal material. Avoid petroleum-based greases (engine oil, WD-40) on rubber seals as they can cause swelling and premature failure. After installation, the first 5-10 pump strokes distribute the lubricant evenly across the cylinder wall.

What causes a foot pump to leak air at the hose connection?

The most common cause is a hardened or cracked nozzle bush that no longer forms a tight seal against the valve stem. Nitrile rubber hardens over time from UV exposure, temperature cycling and contact with workshop chemicals. When the bush loses elasticity, air escapes at the connection point during each pump stroke, reducing inflation efficiency. The S-504/KIT nozzle bush is a direct replacement: remove the old bush from the connector housing, press in the new one, and the seal is restored.

How do I prevent my foot pump hose and seals from cracking?

Store the pump in a dry, cool location away from direct sunlight. Coil the hose loosely without sharp kinks. UV radiation and extreme temperature swings are the primary causes of rubber degradation in both the hose and the nozzle bush. Apply a drop of silicone grease to the piston ring every 3-6 months to keep it supple. Keep the valve connector capped when not in use to prevent grit ingress. For pumps stored in vehicle boots, check the hose condition every 6 months as boot temperatures can exceed 60 degrees Celsius in summer.

Does the kit include a replacement hose for the S-504?

No, the S-504/KIT does not include a replacement hose. The 30" (762 mm) braided hose on the S-504 is a durable component that typically lasts 3-5 years before UV and flexing cause visible cracking. If your hose needs replacement, contact STAR directly for a spare hose order. The kit focuses on the higher-wear components (piston ring, nozzle bush) and the most commonly needed adapters (cycle nozzle, football pin).

Can I use WD-40 on my foot pump seals?

No. WD-40 is a petroleum-based solvent that degrades nitrile rubber and can cause the piston ring and nozzle bush to swell, soften and fail prematurely. Use silicone grease or silicone spray for lubricating foot pump seals. Silicone is chemically inert to rubber compounds and provides long-lasting lubrication without degrading the seal material. If you have already used WD-40 on your pump seals, replace the affected components with parts from the S-504/KIT and switch to silicone grease going forward.

How long does the S-504 foot pump last with regular kit maintenance?

With periodic piston ring and nozzle bush replacement using the S-504/KIT, the pump body lasts 10+ years of regular workshop use. The heavy-duty steel cylinder, powder-coated frame and foot pedal mechanism do not wear significantly under normal operation. The kit transforms the S-504 from a consumable tool into a long-term investment: replacing a piston ring every 2-3 years costs a fraction of a new pump and restores full 325 cc output each time.
