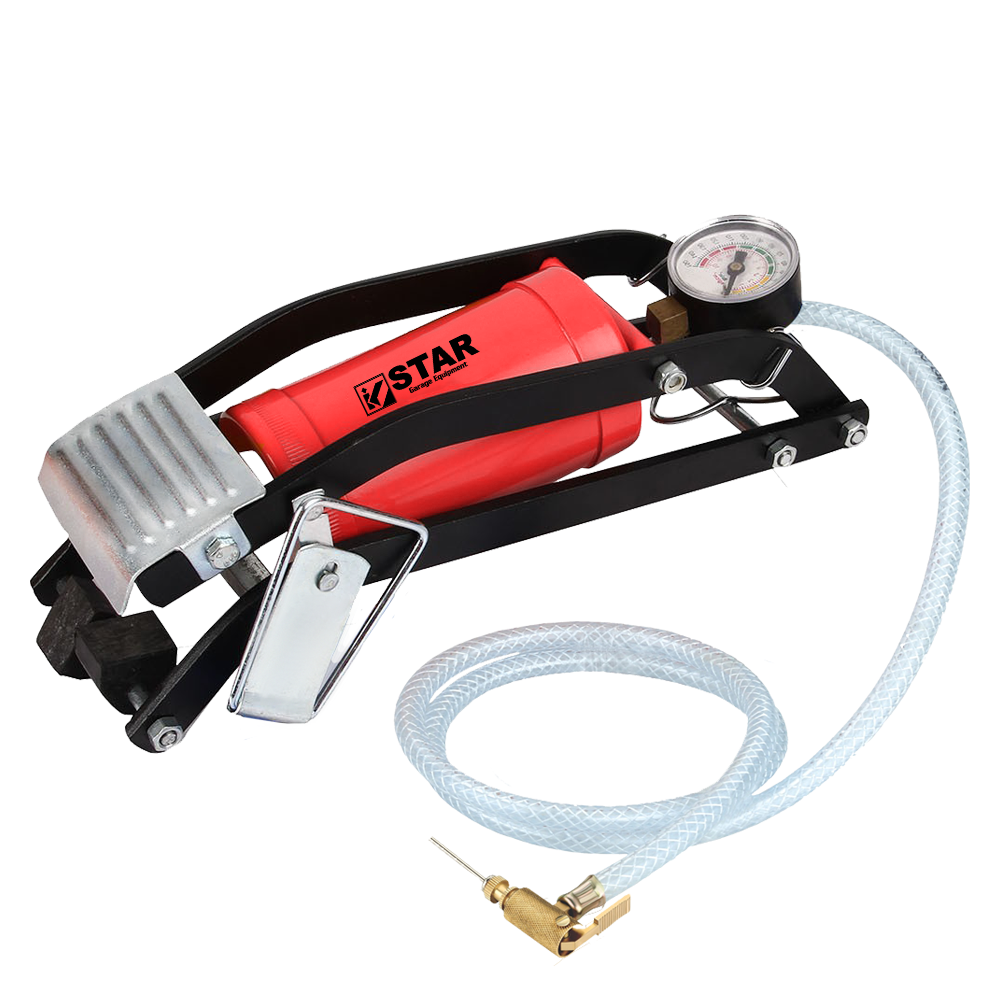

S-504 Foot Operated Air Pump

Frequently Asked Questions: Foot Operated Air Pump

What is a foot operated air pump and how does it work?

A foot operated air pump uses a piston-and-cylinder mechanism driven by your foot to compress air and push it through a hose into a tyre or inflatable. When you step on the pedal, the piston moves down, compressing air in the cylinder. A one-way check valve prevents air from flowing back, so each stroke adds pressure to the tyre. The return spring lifts the pedal back up, drawing fresh air into the cylinder through an inlet valve. The STAR S-504 delivers 325 cc of air per stroke from its 63.5 mm bore, reaching pressures up to 230 PSI. No electricity, batteries or compressor needed.

What is the maximum PSI of the STAR S-504 foot pump?

The S-504 reaches a maximum pressure of 230 PSI (16 bar), which is significantly higher than most consumer foot pumps rated at 100-160 PSI. This 230 PSI rating means the pump handles all common inflation tasks with headroom: car tyres (30-35 PSI), SUV tyres (35-45 PSI), motorcycle tyres (28-40 PSI), and even high-pressure road bicycle tyres (80-130 PSI). The higher rating also means the pump maintains efficient air delivery as back-pressure builds, unlike lower-rated pumps that lose efficiency above 60% of their maximum.

What does 325 cc output per stroke mean for inflation speed?

The 325 cc per stroke means the S-504 delivers approximately 50-60% more air per pump than standard foot pumps with 38-50 mm bores (which deliver 100-200 cc). In practical terms: inflating a standard car tyre from 20 PSI to 32 PSI takes approximately 80-100 full strokes with the S-504, compared to 150-200 strokes on a smaller pump. A completely flat car tyre (12-15 litres volume) requires roughly 40-50 strokes just to fill the volume before pressure starts building, then another 40-60 strokes to reach target pressure.

Can the S-504 foot pump inflate a completely flat car tyre?

Yes, the S-504 can inflate a completely flat tyre, though it requires 10-15 minutes of steady pumping. A flat car tyre holds approximately 12-15 litres of air. At 325 cc per stroke, filling the volume alone takes 40-50 strokes, then building pressure to 32 PSI requires another 40-60 strokes. Total: approximately 100-120 full strokes over 10-15 minutes. This is slower than an electric compressor but works reliably when no power source is available, making the S-504 a dependable roadside emergency tool.

Does the S-504 work with Presta and Schrader valves?

The S-504 ships with a Schrader valve connector (the standard valve on all car, motorcycle and most bicycle tyres) and includes a ball needle for sports equipment. For Presta valves used on road bicycles, a small Schrader-to-Presta adapter is needed (widely available at bicycle shops). The pump also includes an inflatable nozzle adapter for air mattresses, pool toys and camping equipment. The Schrader connector pushes directly onto the valve stem and locks in place for hands-free pumping.

Can I use the S-504 for motorcycle tyre inflation?

Yes, motorcycle tyres typically require 28-40 PSI, which is well within the S-504's 230 PSI capability. The 30" braided hose provides enough reach to access motorcycle valve stems in tight wheel positions. For sport bikes with high-pressure tyres (36-42 PSI front, 40-42 PSI rear), the S-504 delivers these pressures efficiently. The foot pump is particularly useful for motorcycle touring and adventure riding where electric compressors add weight and complexity to the luggage setup.

Is a foot pump better than a 12V electric compressor?

Each has advantages: electric compressors are faster (3-7 minutes per tyre) but overheat, have motors that wear out, and depend on battery power. The S-504 takes 5-8 minutes per tyre but never overheats, has no motor to seize, works when the car battery is flat, and lasts 5-10 years with the accessory kit. Many mechanics recommend keeping both: the compressor for daily convenience and the foot pump as a backup that works when electronics fail. For remote areas, camping and emergency kits, the foot pump's independence from power sources makes it the more reliable choice.

How long does the S-504 foot pump last?

With proper maintenance, the S-504 lasts 5-10 years of regular use. The heavy-duty steel body and precision-machined cylinder do not wear significantly. The piston seal is the primary wear component, typically needing replacement after 2-3 years of weekly use (or longer for occasional use). The S-504/KIT accessory kit includes all replacement seals and piston components, allowing field service that restores full performance in minutes. The braided hose lasts 3-5 years before UV and flexing cause cracking.

Why is my foot pump not pumping air?

The most common causes are a worn piston seal, a damaged hose, or a faulty check valve. If the pedal feels soft with no resistance, the piston seal has worn and air is bypassing the piston; replace using the S-504/KIT. If you hear hissing from the hose or connections, check for cracks, loose fittings or a damaged connector. If air bleeds back when you release the pedal (gauge drops between strokes), the check valve is not seating properly; clean it or replace the valve component from the accessory kit.

How do I maintain the S-504 foot pump?

Store in a dry place to prevent rust on the steel body. Apply a drop of silicone grease or light machine oil to the piston seal every 3-6 months to keep it supple. Check the hose for cracks or kinks before each use. Keep the valve connector clean and free of grit. If the pump loses efficiency (fewer PSI per stroke or the pedal feels easier than usual), the piston seal needs replacement. The S-504/KIT provides all wear parts for a complete service. Avoid storing in direct sunlight, which degrades the rubber hose faster.

What is the difference between 100 PSI and 230 PSI foot pumps?

A 100 PSI foot pump is adequate for car tyres (30-35 PSI) but struggles with high-pressure bicycle tyres and loses efficiency above 60 PSI. The S-504's 230 PSI rating means it maintains full air delivery even at higher back-pressures, inflates road bicycle tyres (80-130 PSI) without difficulty, and provides genuine headroom for all applications. The higher rating also reflects stronger construction: the cylinder, piston seal and check valve must withstand greater forces, which translates to longer service life even at lower operating pressures.

Can I use the S-504 for sports balls and inflatables?

Yes, the S-504 includes a ball needle adapter for footballs, basketballs, volleyballs and rugby balls, plus an inflatable nozzle for air mattresses, pool toys and camping equipment. Sports balls typically require only 8-15 PSI and inflate in 5-10 pumps. Air mattresses and inflatables need high volume at low pressure; the S-504's 325 cc per stroke fills them faster than hand pumps. The 230 PSI maximum is never reached with these items; the pump simply delivers volume efficiently at low back-pressure.

How do I store the S-504 foot pump properly?

Store in a dry, cool location away from direct sunlight. Coil the hose loosely (never kink it) and keep the valve connector capped or covered to prevent dirt ingress. The pump fits easily in a car boot, workshop drawer or toolbox at 2 kg. For long-term storage (over 6 months), apply a thin coat of light oil to the exposed piston rod to prevent surface rust. Before first use after storage, pump a few strokes without a load to redistribute the piston seal lubricant and confirm the check valve is seating correctly.

What safety precautions should I take when using a foot pump?

Never exceed the tyre's maximum rated pressure (printed on the sidewall). Always check the gauge while pumping and stop at the recommended PSI. Over-inflation can cause tyre blowout, which is dangerous at close range. Use the pump on a flat, stable surface to prevent it tipping during vigorous pumping. Inspect the hose for cracks before each use; a burst hose under pressure can whip and cause injury. Keep fingers away from the valve connector while under pressure. For children using the pump, adult supervision is recommended.
