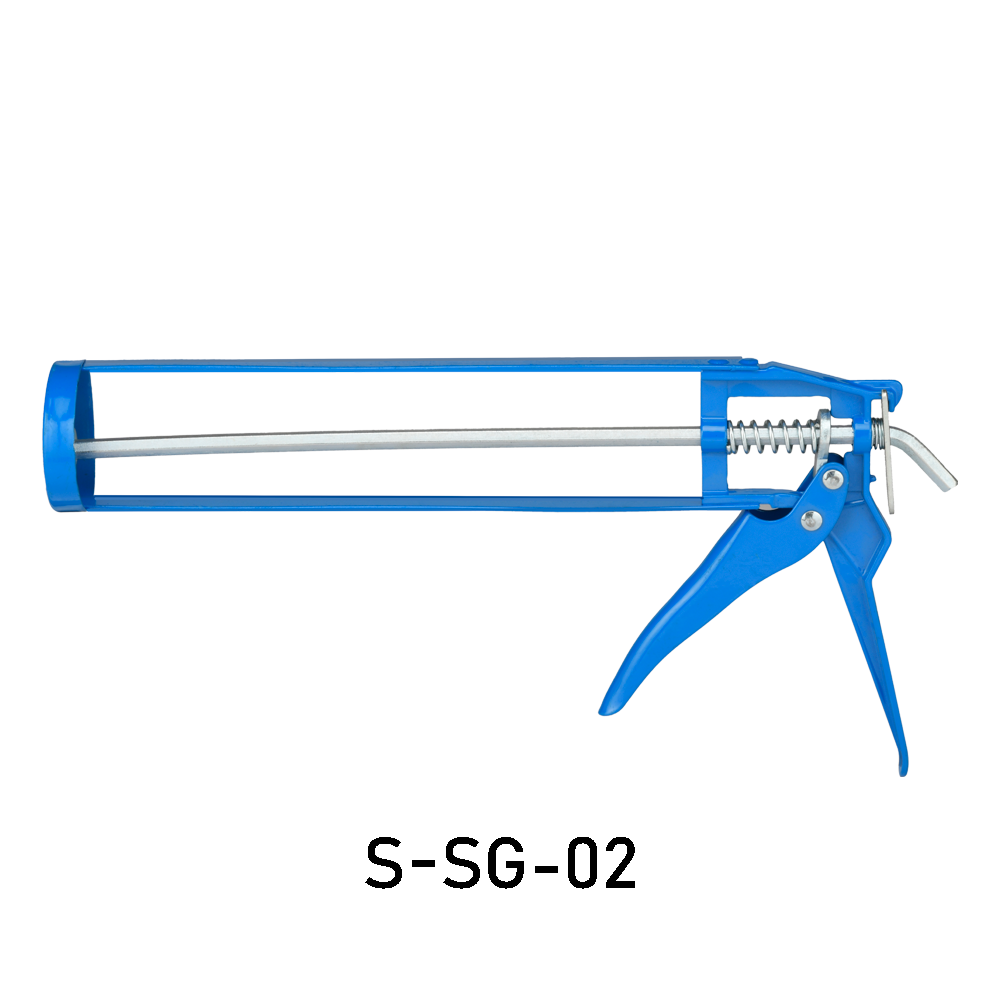

S-SG-02 Skeleton Caulking Gun

Frequently Asked Questions: Skeleton Caulking Gun

What is a skeleton frame caulking gun and how does it differ from enclosed designs?

A skeleton frame caulking gun uses an open wire-frame structure instead of a solid barrel or half-barrel to hold the cartridge. The S-SG-02 grips the cartridge at the front ring and rear plate while leaving the sides exposed. This reduces weight for overhead work, lets you see the remaining sealant level instantly, and allows faster cartridge changes because you simply slide the cartridge in from the side rather than threading it into an enclosed tube.

What are the advantages of a skeleton caulking gun over a half-barrel gun?

The three main advantages are lighter weight, cartridge visibility and faster reloading. The S-SG-02 weighs less than the S-SG-01 half round because it uses less steel. You can see exactly how much sealant remains without stopping work. Cartridge changes are quicker because you slide the cartridge in from the open side. The trade-off is less lateral support for the cartridge, which matters only with very thick adhesives that put high sideways pressure on the tube walls.

What does the hex rod do differently from a smooth round rod?

The hex rod's six flat faces lock against the guide bush, preventing the rod from rotating as you squeeze the trigger. On smooth round rod guns, the rod can twist slightly under load, tilting the plunger disc inside the cartridge. A tilted disc pushes sealant unevenly, causing one side of the bead to be thicker than the other. The S-SG-02's hex rod eliminates this by mechanically preventing rotation, keeping the plunger disc perpendicular to the cartridge walls throughout the full stroke.

Can the S-SG-02 accept 400 ml cartridges as well as 300 ml?

Yes, the S-SG-02 skeleton frame accommodates both standard 300 ml (10 oz.) and extended 400 ml sealant cartridges. The open frame design and adjustable plunger travel allow longer cartridges to sit in the cradle without modification. This is useful for contractors who use 400 ml polyurethane or MS polymer cartridges that are becoming more common in commercial construction. The half-round S-SG-01, by comparison, is sized specifically for 300 ml cartridges.

Is the skeleton gun suitable for overhead and ladder work?

Overhead and ladder work is where the skeleton gun excels compared to heavier enclosed designs. The reduced weight means less arm fatigue when holding the gun above your head for ceiling joints, soffit sealing or overhead ductwork. The S-SG-02/HD variant adds a ladder hook so you can hang the gun on a rung between beads rather than climbing down to set it on the ground. Glaziers working on curtain walls and roofers sealing flashing joints are the primary users of skeleton guns for this reason.

How does the 6:1 thrust ratio compare to other caulking guns?

A 6:1 ratio means six units of force reach the cartridge for every one unit of hand squeeze, placing the S-SG-02 above entry-level 5:1 guns but below high-thrust 18:1 or 26:1 models. For standard silicone and acrylic sealants, 6:1 provides comfortable dispensing with good flow control. For medium-viscosity products like MS polymer, 6:1 still works well without the over-dispensing risk of very high ratios. Only very thick construction adhesives and cold-weather polyurethane benefit from ratios above 10:1.

Will the cartridge slip or fall out of the open skeleton frame?

No. The front retaining ring and rear plunger plate hold the cartridge securely in position during use. The cartridge base sits against the plunger disc, and the nozzle end passes through the front ring. Even when working at angles or overhead, the cartridge cannot fall out because the plunger spring maintains constant contact with the cartridge base. The only time the cartridge is unsecured is during loading, before you release the plunger rod to engage.

How do I check the cartridge level on a skeleton caulking gun?

Simply look through the open frame sides while the gun is loaded. Most sealant cartridges are made from translucent or semi-translucent plastic, so you can see the sealant level through the cartridge wall. Even with opaque cartridges, you can see the plunger disc position through the frame gaps, which tells you how far the rod has advanced and therefore how much material remains. This eliminates the guesswork that enclosed half-barrel guns require.

Does the powder coating protect against rust in wet conditions?

Yes, the powder-coated finish on the S-SG-02 provides a durable barrier against moisture, sealant chemicals and general corrosion. Powder coating is baked onto the steel at high temperature, creating a harder and more chip-resistant finish than wet paint. For outdoor construction work where the gun is exposed to rain, morning dew and sealant spills, the coating prevents the rust that would quickly develop on bare mild steel. Wipe the gun dry at the end of each day for maximum coating life.

Can the S-SG-02 handle thick construction adhesives?

The S-SG-02 handles standard construction adhesives in 300 ml cartridges, though very thick grab adhesives may require more hand effort than with higher-thrust guns. The 6:1 ratio provides adequate force for most sealants and medium-viscosity adhesives. For very thick products that make your hand tire quickly (heavy-duty grab adhesives, cold-weather polyurethane), the S-SG-AL/HD aluminium gun with its higher thrust ratio is a more comfortable choice for extended use. The skeleton frame itself does not limit adhesive thickness; only the thrust ratio affects dispensing effort.

How do I prevent the nozzle from clogging between uses?

Cap the nozzle immediately after finishing each sealing session. Most cartridges include a screw-on cap; if yours does not, push a nail or screw into the nozzle opening to seal it. For overnight storage, this prevents air from curing the sealant inside the nozzle. If a clog does form, the S-SG-02/HD includes a de-clogging pin specifically for clearing hardened sealant from the nozzle tip. On the standard model, a piece of stiff wire or a nail serves the same purpose.

How long does a skeleton caulking gun last with daily professional use?

With proper care, the S-SG-02 lasts 2-5 years of daily professional use depending on the number of cartridges dispensed per day and site conditions. The hex rod and trigger mechanism are the highest-wear components. Wipe sealant residue from the rod after each shift to prevent buildup that causes drag. The powder coating protects the frame from corrosion for the life of the gun. Replace the gun when the trigger mechanism develops excessive play or the rod guide bush wears enough to allow rod wobble.

Is the skeleton gun suitable for beginners and DIY users?

Yes, the skeleton gun is one of the easiest caulking gun types for beginners because the open frame makes loading intuitive and the cartridge level is always visible. New users often struggle with enclosed guns because they cannot see what is happening inside. With the S-SG-02, you can watch the plunger advance, see when the cartridge is nearly empty, and easily identify loading mistakes. The 6:1 thrust ratio also means less hand effort than entry-level 5:1 guns, reducing fatigue for users not yet accustomed to sustained squeezing.

What is the difference between the S-SG-02 standard and S-SG-02/HD?

Both share the same skeleton frame geometry, hex rod and 6:1 thrust ratio; the HD adds site-convenience features for demanding professional environments. The S-SG-02/HD includes a ladder hook for hands-free storage when working at height, a de-clogging pin for clearing blocked nozzles without searching for a nail, and a reinforced thicker-gauge frame that withstands the knocks of busy construction sites. Choose the standard for general use and the HD for daily site work where the extras save time.
