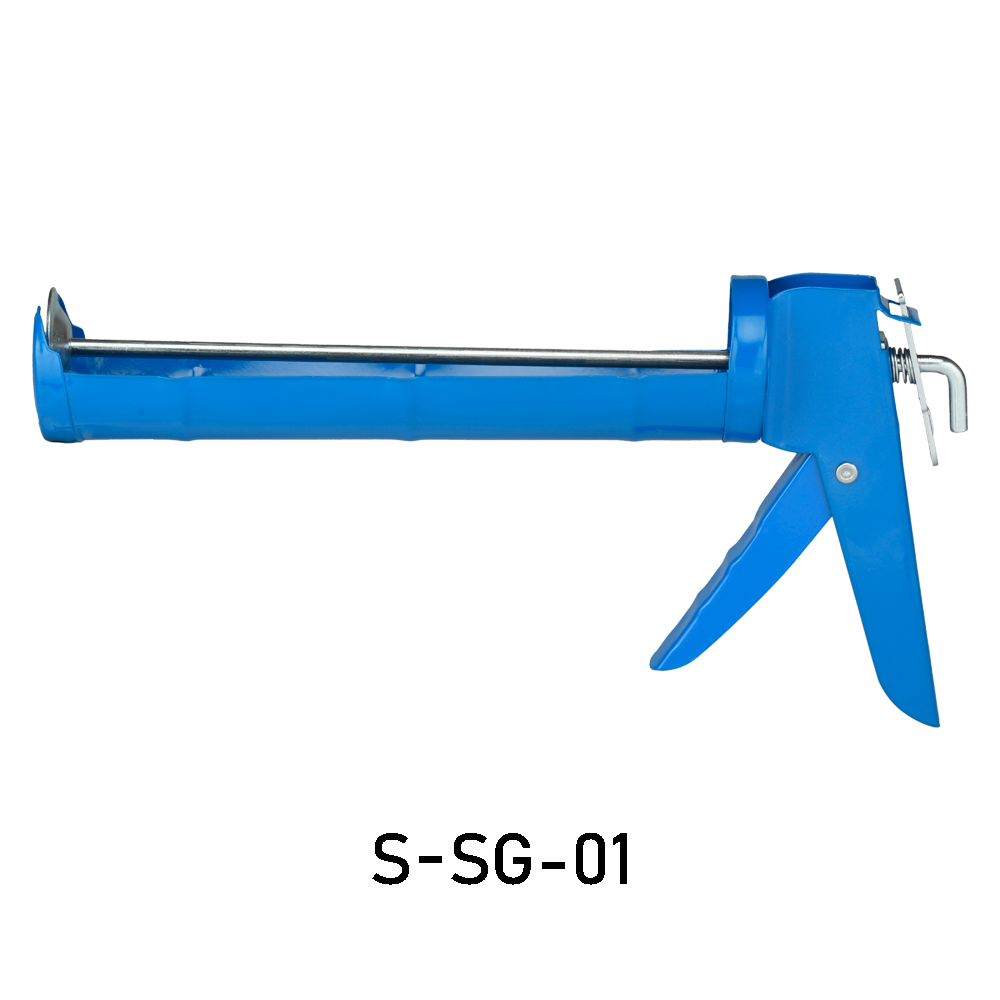

S-SG-01 Caulking Gun

Frequently Asked Questions: Half Round Caulking Gun

What is a half round caulking gun?

A half round caulking gun (also called a half barrel or cradle gun) is a manual sealant applicator with a curved steel tray that supports the cartridge along its full length. The S-SG-01 uses this design to prevent the 300 ml cartridge from flexing or cracking under plunger pressure. Unlike skeleton frame guns that grip the cartridge at only a few points, the half-barrel cradle distributes force evenly, which is particularly important when dispensing thicker sealants like polyurethane or hybrid adhesives that require more pushing force.

What is the thrust ratio of the S-SG-01 and what does it mean?

The S-SG-01 has a 5:1 thrust ratio, meaning it multiplies your hand squeeze force by five before applying it to the cartridge plunger. For standard silicone and acrylic sealants, 5:1 provides smooth, controllable dispensing without excessive effort. Higher ratios (18:1 or 26:1) are designed for very thick adhesives and polyurethane sealants. If you primarily use silicone, acrylic or latex caulk, 5:1 gives you better flow control because the sealant advances proportionally to your squeeze rather than surging forward under high mechanical advantage.

What cartridge sizes fit the S-SG-01?

The S-SG-01 accepts standard 300 ml (10 oz.) and 310 ml sealant cartridges, which are the worldwide standard size used by virtually all sealant manufacturers. This includes silicone cartridges, acrylic caulk tubes, polyurethane sealant cartridges, MS polymer tubes and construction adhesive cartridges. The half-barrel cradle accommodates the full range of standard-diameter cartridges without adapters. It does not accept sausage packs (foil packs); for those, use the S-SG-03 series sausage guns.

How do I load a cartridge into the S-SG-01 half round caulking gun?

Press the thumb release and pull the plunger rod fully back until it locks. Drop the 300 ml cartridge into the half-barrel cradle with the nozzle end pointing forward. Use the integrated seal puncture tool on the gun frame to pierce the foil seal inside the cartridge nozzle. Cut the nozzle tip at a 45-degree angle to your desired bead width. Release the plunger rod lock so it rests against the back of the cartridge. Squeeze the trigger a few times until sealant appears at the nozzle tip.

Can I use the S-SG-01 with polyurethane and construction adhesives?

Yes, the S-SG-01 handles polyurethane sealants and standard construction adhesives in 300 ml cartridges. The half-barrel cradle is particularly suited to these thicker materials because it prevents the cartridge from bowing under the higher plunger pressure needed to push viscous products. For very thick adhesives that require sustained high force (such as heavy-duty grab adhesives), the S-SG-AL/HD aluminium gun with its higher thrust ratio may be more comfortable for extended use.

Is the S-SG-01 suitable for professional daily use on construction sites?

Yes, the S-SG-01 is built for professional daily use with cold-rolled mild steel construction, hardened bush guides and welded frame joints. The wider frame resists bending from site knocks, and the smooth rod mechanism has no ratchet teeth to wear down over thousands of cycles. For contractors running 5-10 cartridges per day on window sealing, bathroom fit-outs or general construction, the S-SG-01 provides reliable service. The HD variant adds a ladder hook and carry band for site convenience.

Can I use the S-SG-01 for bathroom and kitchen silicone sealing?

Bathroom and kitchen silicone sealing is one of the primary applications for the S-SG-01. The smooth rod delivers the even, consistent bead that visible joints around bathtubs, showers, sinks and countertops demand. The thumb pressure release stops flow instantly when you reach a corner or need to reposition, preventing the drips and blobs that ruin a clean silicone finish. Cut the nozzle to a small opening (3-4 mm) for neat bathroom joints.

What is the difference between a smooth rod and ratchet rod caulking gun?

A smooth rod advances continuously and proportionally to your trigger squeeze, while a ratchet rod clicks forward in fixed increments with each squeeze. The S-SG-01 uses a smooth rod because it gives finer control over sealant flow rate. Ratchet rods can produce an uneven, pulsing bead on long runs because each click delivers a fixed volume regardless of how gently you squeeze. Smooth rods are preferred by professionals who need consistent bead width across window frames, door frames and long joint runs.

Why does my caulking gun drip after I stop squeezing?

Dripping happens because residual pressure inside the cartridge continues to push sealant out even after you release the trigger. The S-SG-01 solves this with a thumb pressure release that instantly retracts the plunger rod a few millimetres, relieving internal pressure. Press the thumb release at the end of every bead run. If dripping persists, check that the nozzle is not cut too large (a wider opening drips more easily) and that the cartridge is properly seated in the cradle without air gaps behind the plunger disc.

How do I prevent air pockets when using a caulking gun?

Air pockets cause sputtering and uneven beads, and usually enter during cartridge loading or when the cartridge runs low. To prevent them with the S-SG-01: ensure the foil seal is fully punctured before dispensing (a partial puncture traps air), seat the cartridge firmly against the plunger disc with no gap, and squeeze the trigger slowly for the first few centimetres until sealant flows smoothly. If sputtering occurs mid-cartridge, the cartridge itself may have an air void from manufacturing; switch to a fresh cartridge.

How do I clean the S-SG-01 after use?

Remove the spent cartridge, wipe the plunger disc and rod with a dry rag, and clear any sealant residue from the cradle. For silicone residue, use white spirit or isopropyl alcohol on a cloth. For polyurethane, clean immediately before it cures (acetone works on uncured PU). Never submerge the gun in water as this can rust the steel frame. The smooth rod should be wiped clean after every cartridge change to prevent dried sealant from building up and causing drag.

How should I store my caulking gun between uses?

Store the S-SG-01 with the plunger rod fully retracted (pulled back) and no cartridge loaded. This releases spring tension and prevents the rod from developing a set. Store in a dry location between 5 C and 35 C. If you need to store a partially used cartridge in the gun overnight, leave the nozzle cap on and store horizontally. For storage beyond a few days, remove the cartridge and cap it separately to prevent the sealant from curing inside the gun.

What PPE should I wear when using a caulking gun?

Wear nitrile or latex gloves to keep sealant off your skin, and safety glasses when working overhead or cutting nozzle tips. Silicone sealant releases acetic acid vapour (vinegar smell) during curing; ensure adequate ventilation in enclosed spaces. Polyurethane sealants contain isocyanates that can irritate airways; use in well-ventilated areas or wear a half-face respirator for extended indoor application. Wash hands thoroughly after use even if wearing gloves, as some sealant components can penetrate thin glove material over time.

What is the difference between the S-SG-01 standard, HD and PRO models?

All three share the same half-barrel cradle frame, smooth rod and 5:1 thrust ratio; the differences are ergonomic and site-convenience features. The standard S-SG-01 is the base model for general use. The S-SG-01/HD (Heavy Duty) adds a ladder hook for hands-free storage when working at height, a carry band for tool-belt attachment, a de-clogging pin for clearing blocked nozzles, and a reinforced thicker frame for demanding environments. The S-SG-01/PRO adds an ergonomic rubber grip that reduces hand fatigue during extended sealing sessions.
