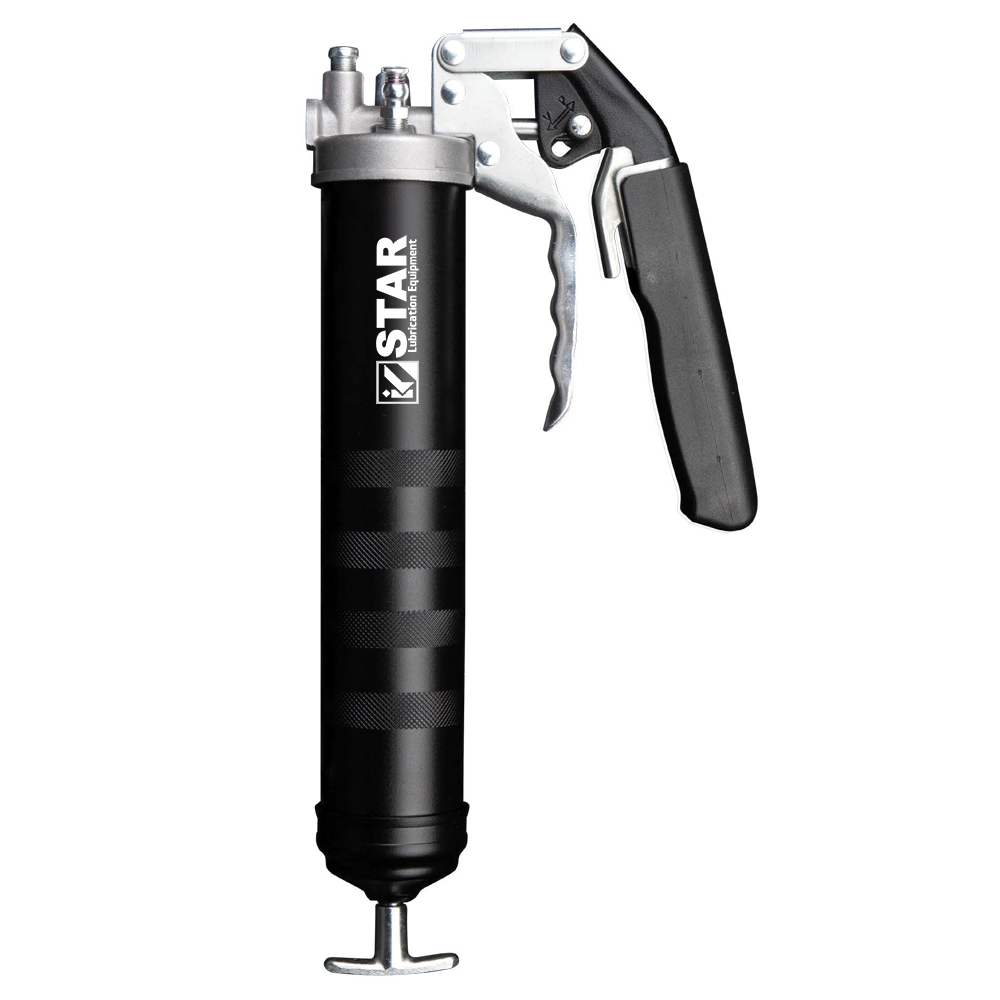

S-808

Dual Mode Grease Gun

Dual Mode (Lever + Pistol) (15 oz. / 500 cc)

The STAR Dual Mode Multifunction Grease Gun combines the convenience of a pistol grip with the power of a lever handle.

Featuring a 2-way operating telescopic handle, this tool allows you to switch between pistol type for use in confined spaces and lever type for high pressure and high volume applications.

Built Tough

  • High Tolerance CNC machined, aluminium die cast head.
  • Robust barrel with 0.049" (1.2mm) wall thickness.
  • Extra-heavy follower spring for positive priming.
  • Rolled threads for quick & easy reloading.
  • Machined non return valve.
  • Knurled barrel for non-slip grip.
  • Non-slip textured powder coated body for extended life.

Multifunctional Grease Gun
Integrated high volume – high pressure adjustable mechanism shift between high volume & high pressure greasing.
1. Lift the button to unlock.
2. Slide to change mode.
3. Press button to lock back in position.

Dual Port

  • Top Port: Used with flexible hose for greasing inaccessible areas.
  • Front Port: For regular greasing applications. Used generally with rigid steel extension.

Features / Loading Options

CARTRIDGE LOADING
CARTRIDGE LOADING
BULK LOADING
BULK LOADING
SUCTION FILLING
SUCTION FILLING
LOADING WITH FILLER PUMP
LOADING WITH FILLER PUMP

Specifications

DeliversHigh Pressure Mode: 0.65 g / Stroke (1 oz. / 44 Strokes)
High Volume Mode: 1.1 g / Stroke (1 oz. / 26 Strokes)		 Pressure Developed High Pressure Mode: 7,000 psi (483 bar)
High Volume Mode (Pistol) : 4,500 psi (310 bar)
High Volume Mode (Lever) : 5,500 psi (380 bar)
TypeManual Grease GunMechanismPistol/Lever Type
Filling OptionCartridge, Bulk, Suction, Filler PumpBarrel Diameter (Ø)57.15 mm / 2 1⁄4 "
Cartridge Capacity400 g (14 oz.)Bulk Capacity15 oz. / 500 cubic cm
Available Thread Options1/8" BSPT / 1/8" NPT / M10 x 1Extension / Hose Size6" (150 mm) Steel Extension /
12" (300 mm) Flexible Hose / Both
